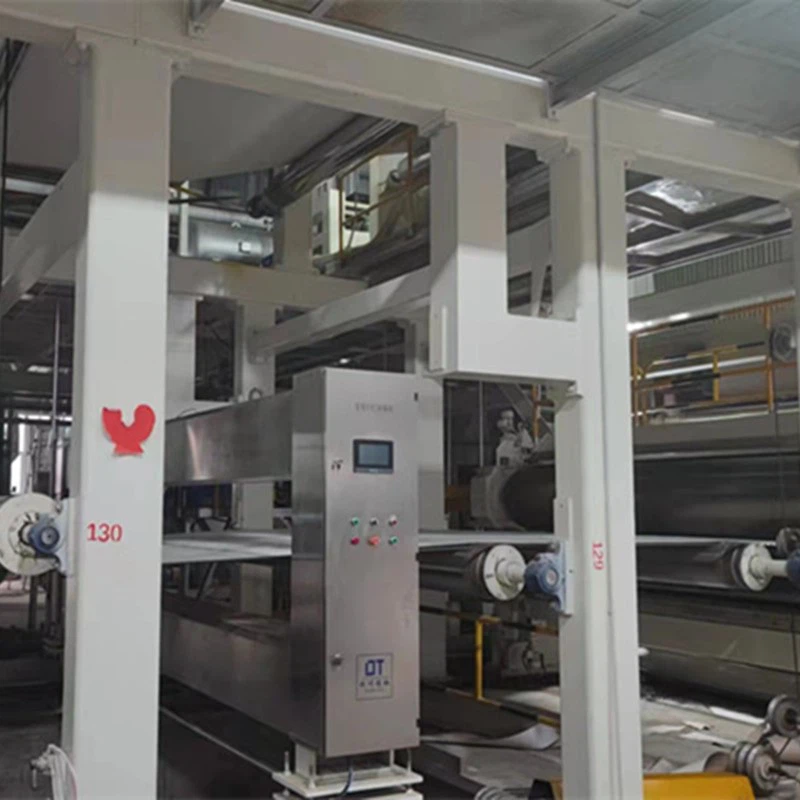

Tsis Siv Neeg Scanner

QCS rau cov kab ntau lawm kab, noo noo, frammage, thiab cov ntawv ntsuas dav ntsuas

Hauv kev lag luam niaj hnub, kev siv cov thev naus laus zis thiab cov khoom siv tau zoo dua qub thiab kev ua tau zoo ntawm cov ntawv ntau lawm. Ib qho khoom tseem ceeb twg yog cov qauv ntsuas, siv rau ntau yam ntsuas thiab kev tswj hauv cov ntawv tshuab. Hauv cov blog no, peb yuav tshawb txog cov software, kev ua haujlwm, thiab kev ua haujlwm ntawm kev kuaj pom hauv cov cav tov.

Lub tshuab kuaj pom hauv cov cav tov rau Microsoft Windows 10 operating system thiab tsim kev siv cov ntaub ntawv PCs7, suav nrog CFC (cov Wincc rau kev teeb tsa. Nws siv profinet kev sib txuas lus, cia rau high- ceev cov ntaub ntawv hloov mus txog 100mbps. Lub system yog tsim los yuav tau sib txuas nrog cov qauv kev sib txuas lus, kev tswj hwm kev sib txuas lus), faib khoom siv cov qauv sib txuas lus nrov li opc. Ib qho ntxiv, nws txhawb TCP / IP kev sib txuas lus nrog kev lag luam lag luam thiab muab cov neeg siv khoom siv rau cov qauv kev sib cuam tshuam rau kev sib cuam tshuam. Lub software tuaj yeem muab tau yooj yim rau ntawm lub PC tus neeg teb chaws chaw nres tsheb rau kev ua haujlwm yooj yim thiab saib xyuas.

Lub kaw lus muaj cov duab sib cav uas tseem ceeb, noo noo nkhaus, qhov tseem ceeb tshaj plaws, thiab kev tuav cov xwm txheej / kev ua haujlwm tsis siv neeg. Nws tseem muaj cov cim tiag tiag {{1} Kev ntsuas lub sij hawm dav thiab muab cov ntaub ntawv nug cov ntaub ntawv keeb kwm. Tus kheej interface kev tsim qauv tso cai rau cov keeb kwm kev nthuav dav, txhawb nqa khoom siv / los ntawm txhais tes qauv. Ntxiv mus, nws suav nrog cov chaw teeb tsa rau scanning ncej kev teeb tsa, kev tshwm sim, thiab tswb, nrog rau kev soj ntsuam cov xwm txheej.

Lub kaw lus scanning tsim ntau cov lus qhia ntau uas tuaj yeem tsim tau lossis siv cov ntawv luam tawm. Cov ntaub ntawv no suav nrog cov ntaub ntawv tshaj tawm, cov ntaub ntawv zoo, cov ntaub ntawv pov thawj zoo, cov ntawv tshaj tawm ua haujlwm, ntawv ceeb toom txhua hli, thiab peb daim ntawv ceeb toom txhua xyoo.

● 1.3.1 Ntsuas Qhov hnyav thiab tswj
Tus tswj hwm kev sib piv cov ntaub ntawv hnyav hnyav nrog teeb tsa qhov tseem ceeb los txiav txim siab cov nyiaj sizing hauv cov ntawv siv. Nws hloov kho lub sizing valve (lossis qhov ceev ntawm sizing twj tso voj voog kom ua tiav kev tswj hnyav hnyav. Kev hloov pauv ntawm sizing xwm yeem thiab txaus tus nqi tau them los ntawm kev kho lub sizing (lossis ceev ntawm lub tswv yim tswj hwm, txo qhov hnyav ntawm kev tswj kom hnyav. Lub system txau QCS (kev tswj hwm zoo) nrog cov cim xws li sizing tus nqi txaus, thiab ntawm {lines} cov twj paj nruag los ntawm cov twj hauv zos lossis kev sib txuas lus nrog DCS.

● 1.3.2 Kev Ntsuas Hluav Taws Xob thiab Kev Tswj Xyuas
Tus maub los tswj lub zog steaser siab raws li qhov sib txawv ntawm cov kev ntsuas noo noo los ntawm kev tswj hwm qhov chaw ntawm lub qhov cub. Lub kaw lus ncaj qha tswj lub chav xa mus rau lub thawv ci ci thaum tswj cov sib txawv ntawm lwm cov thawv ntim khoom cua sov. Yog tias lub web so, lub system txo cov roj siab muab rau cov pa roj. Tom qab lub vev xaib rov qab los, lub siab nrawm yog nce zuj zus kom txog thaum cov ntawv ya ua kom ruaj khov, ua tiav cov kev ua tiav. Nce cov ntsiab lus siab thiab cov khoom siv hluav taws xob siab tau muab rau QCS ntawm cov twj hauv zos lossis kev sib txuas lus nrog DCS.

Lub kaw lus scanning sib xyaw ua ke rau cov ntawv ntug dej ntshiab kom raug ntsuas ntawm txoj haujlwm ntawm ntug ntawv ntug. Lub siab - precision teb encoder thiab xam software kom paub tseeb ntawm daim ntawv dav, muaj qhov tseeb ntawm tsawg dua 1mm.

Lub kaw lus scanning lav tau kev ua tau zoo los ntawm sensor thiab tswj cov specifications. Kev tswj hwm kev ua tau yog txiav txim siab los ntawm kev txo qis hauv ntev-}}}}}} ntawm cov ntawv dig thaum peb hnub thiab ib qho kev tswj hwm tau peb hnub.

2.1 scanning ncej:

◆ Measurement speed: >1000 ntsuas / S

Daws Teeb Meem: Tso rau ± 0.25mm

◆ Lub taub hau sab sensor lub taub hau yuam kev yuam kev: ± 0.10 hli

Lone Khab Qhia Yuam Kev: ± 0.15mm

◆ Ntawv Tshuab Kev Taw Qhia Yuam Kev: ± 0.2 hli

◆ Kev Tshawb Nrhiav Ceev: 50-500mm / S (kho tau zaus zaus, txhim kho raws li cov ntawv tshuab ceev)

Incov Kev Ntsuas Tus Qauv Ntsuas Qhov Raug: Tsawg dua los yog sib npaug rau 1 hli

◆ Muab lub siab zoo los tiv thaiv cov hmoov av

Cov neeg txheeb ze cov av noo: tsawg dua los yog sib npaug rau 95%, tsis muaj hws

◆ Qhov siab tshaj plaws ntawm qhov kub tshaj: tsawg dua los yog sib luag rau 85 degree

2.2 sensor kev ua haujlwm:

◆ Kev ntsuas GAP: 8-20mm

Class Kev Tshawb Xyuas Lub Teeb Kev Tshawb Xyuas Lub Teeb Kev Tshawb Xyuas Aperture: 5mm

Wremges Daim ntawv ceeb toom hnyav npaum li: 5-250G / M2

◆ Kev Ntsuas Ntau Yam: Hub Nroj Zeb: 0-20%, Lub cev yuag: 5-250g / m2

Repeathabutabic: noo noo: 0.15%, Lub cev yuag: 0.25% lossis 0.25g / m2

◆ Yis noo noo kev raug: 2σ tsawg dua lossis sib npaug ± 0.15 (% noo noo cov ntsiab lus, ntsuas phoo qauv, tas daim ntawv qauv)

Ryn lub cev hnyav ua haujlwm: 2σ tsawg dua lossis sib npaug rau ± 0.25g / scan lub taub hau kev ntsuas (scan lub taub hau)

◆ WillillProof thiab hws - ntawv pov thawj qauv

Devution: 4-20ma, RS485

Kev Ua Haujlwm Ntau Tshaj Ntau: 70 Qib

2.3 khoom siv kev paub tseeb:
Cov khoom siv tau muab nyob rau hauv cov lus pom zoo no ua raws li cov qauv xws li iEC1131, IEC1131, thiab muaj daim ntawv pov thawj Tool, thiab European CE manufacturing kos. Daim ntawv teev cov npe tag nrho yog muab rau txo qis downtime thaum cov khoom tsis ua haujlwm, kom rov qab los ntawm 20 feeb. Cov kev tswj hwm kev tswj hwm (txuas ntxiv lossis sib quas ntus) muaj lub sijhawm ua haujlwm tsis raug cai (tsis suav nrog cov khoom sib foob) ntawm ntau tshaj 40,000 teev.

2.4 Tswj Kev Tswj:
Kev tswj tau kev ua tau zoo cuam tshuam nrog qhov nruab nrab ntev ntev kev sib txawv ntawm cov ntawv yob tau txiav txim siab raws li kev tswj dej noo ntawm cov ntawv hluav taws xob. Qhov feem pua ​​txo qis hauv kev hloov pauv tau suav raws qhov sib txawv ntawm qhov tseem ceeb ntawm cov nuj nqis nruab nrab thaum lub sijhawm ua haujlwm tsis pom kev. Lub tswj system lub hom phiaj kom ua tiav cov txiaj ntsig hauv qab no:

◆ Qhov tswj kev hnyav: kev txhim kho tus nqi ntau dua lossis sib npaug rau 60%

◆ Ya noo Tswj Xyuas: Txhim kho tus nqi ntau dua lossis sib npaug rau 60%

Lub kaw lus scanning ua lub luag hauj lwm tseem ceeb hauv cov txheej txheem papermakakaking, muab kev ntsuas raug thiab tswj ntawm qhov hnyav thiab noo noo tsis. Nrog nws cov software siab tshaj, zoo dua qub kev ua haujlwm, thiab siab -}}} Ention sensors, nws pab txhawb kev tsim khoom lag luam thiab cov ntawv zoo hauv kev tsim khoom. Lub kaw lus lub peev xwm los ua kom muaj kev tshaj tawm thiab interface nrog lwm lub tshuab tswj xyuas cov haujlwm ua haujlwm tau zoo thiab ua kom zoo ntawm cov ntawv tshuab.

Cov khoom siv ntxiv, kiv cua tshuab, hluav taws xob kev tswj hwm, chav dej tsim hws, QCS, MCS thiab lwm yam.
