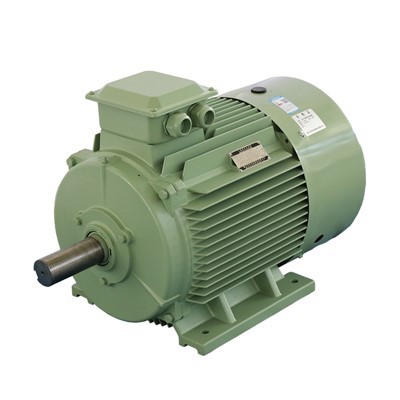

Kev paub txog kev ua haujlwm zoo nrog peb AC Tsav, tsim los rau kev ua haujlwm ntev thiab kev ua haujlwm siab. Exceptionally ntau yam, nws yog zoo meej rau industrial, commerciause. Fais fab koj lub tshuab nrog kev ntseeg siab thiab txuag cov nqi hluav taws xob-xaiv peb lub tshuab AC rau kev ua haujlwm seamless.



YE3/4/5 Series high Efficiency|IEC Electric Tsav



● 1.YE Series chaw tsim tshuaj paus

YE3/4/5 high-efficiency zog-txuag lub cev muaj zog yog ib yam khoom tshiab tsim los ntawm Huanian Motor Company. Nws ua tau raws li tus qauv tshiab 2/3/4/5 zog efficiency (GB2) thiab European tus qauv IE3. Nws yog cov khoom siv hluav taws xob txuag hluav taws xob ntawm nws tus kheej tsim raws li qib kev siv hluav taws xob ntawm IEC60034-30 thiab Tuam Tshoj GB18163-2012 cov qauv. Thaum siv rau hauv qhov kev ua kom zoo, nws tag nrho lub zog txuag lub peev xwm yuav tsum ncav cuag 30%-60%. Nws tsim tau txais kev tsim khoom siv thev naus laus zis thiab cov ntaub ntawv zoo los xyuas kom muaj kev ntseeg siab thiab ua haujlwm ntev hauv kev siv hluav taws xob siab. Lub cev muaj zog muaj cov qauv compact thiab ruaj khov. Nws yog dav siv nyob rau hauv cov kiv cua, twj, compressors, kis tau tus mob thiab lwm yam khoom siv kho tshuab loj. Yog li ntawd, nws yog dav siv los ua lub zog txuag lub cev muaj zog hauv ntau yam kev lag luam. Nws qhov kev khiav hauj lwm zaus yog 50Hz, qhov hluav taws xob qis dua 1000V, thiab nws tsim nyog rau 2- ncej, 4- ncej, thiab 6- ncej motors nrog ncej loj ntawm H80 mus rau H355, thiab lub zog Qhov ntau yog los ntawm 0.75kW txog 375kW. Nws npog ntau lub hwj chim thiab yog qhov zoo tshaj plaws high-efficiency zog-txuag khoom ntawm kev ua lag luam. Tsis tas li ntawd, nws yog tsim los siv cov cuab yeej tshiab thiab cov ntaub ntawv tshiab, thiab muaj cov yam ntxwv ntawm kev ua haujlwm siab thiab lub zog loj, uas yog tsim rau ntau yam kev thov hauv kev lag luam. Piv txwv li, nws tuaj yeem siv dav hauv ntau yam kev sib kis tshuab kev lag luam xws li cov twj tso kua dej, kiv cua, tshuab cov cuab yeej, reducers, ntim tshuab, mining machinery, siv tshuab, thiab lwm yam. tshwj xeeb tshaj yog nyob rau hauv high-zog-siv industries xws li cua twj tso kua mis manufacturing, kev lag luam cement, papermaking kev lag luam, thiab lwm yam, lub cev muaj zog no muaj txiaj ntsig zoo txuag hluav taws xob, txuag nqi hluav taws xob rau cov lag luam thiab txhim kho kev tsim khoom.

productcate-1368-912

productcate-1368-726





Ntau qib kev ua tau zoo thiab lub zog ua haujlwm

YE3 series motors paub txog lawv cov kev ua haujlwm siab thiab ua tau raws li cov qauv kev siv hluav taws xob thawj zaug ntawm lub teb chaws tus qauv GB 18613-2012. Qhov no txhais tau hais tias cov motors no muaj lub zog ua haujlwm siab, uas yog li ntawm 10-15% siab dua li ntawm cov motors zoo tib yam, txo qis kev siv hluav taws xob thiab cov nqi khiav lag luam. Nws cov yam ntxwv tseem ceeb ntawm kev ua haujlwm muaj xws li:

High efficiency: txhim kho kev siv hluav taws xob thiab txo kev siv hluav taws xob.

Stability: kev ua haujlwm ruaj khov, tsis tshua muaj kev vibration thiab suab nrov tsawg.

Kev ntseeg tau: cov ntaub ntawv zoo thiab cov thev naus laus zis siab heev, kev pab cuam lub neej ntev.Environmental adaptability: hloov mus rau ntau yam kev lag luam nyuaj thiab hnyav.

01

Txoj kev txias

YE3 series motors siv IC411 txias txoj kev. Qhov no yog tus kheej kiv cua txias system. Lub cev muaj zog muaj kiv cua uas dissipates cua sov los ntawm huab cua ntws. Txoj kev no ua kom muaj kev ua haujlwm zoo ntawm lub cev muaj zog nyob rau hauv siab load thiab kub ib puag ncig.

02

Rated voltage thiab zaus

Tus qauv ntsuas hluav taws xob ntawm YE3 series motors feem ntau yog 380V lossis 415V, tab sis lwm qhov voltage kuj tuaj yeem hloov kho raws li cov kev xav tau tshwj xeeb, xws li 220V, 400V, 440V, thiab lwm yam. Qhov ntsuas zaus yog 50Hz lossis 60Hz, thiab cov motors tuaj yeem ua tau. tsim rau hauv cov qauv nrog ntau zaus raws li tus neeg yuav tsum tau ua kom haum rau cov qauv siv hluav taws xob ntawm ntau lub teb chaws thiab cheeb tsam.

03

Tshwj xeeb zaus thiab voltage customization

Zaus: Ntxiv nrog rau tus qauv 50Hz thiab 60Hz, lub cev muaj zog tuaj yeem hloov kho rau qee zaus kom tau raws li qhov xav tau ntawm cov ntawv thov tshwj xeeb scenarios.

Voltage: Lub cev muaj zog ntawm qhov sib txawv ntawm qhov sib txawv tuaj yeem muab tau raws li daim phiaj siv hluav taws xob ntawm ntau lub teb chaws thiab cheeb tsam.

04

Chav kawm tiv thaiv thiab chav kawm rwb thaiv tsev

Kev tiv thaiv qib IP55: Lub cev muaj zog muaj qib IP55 tiv thaiv, plua plav thiab dej tsis zoo, thiab tsim nyog rau ntau qhov chaw ua haujlwm.

Rwb thaiv tsev qib F lossis H: Nws siv cov ntaub ntawv F lossis H rwb thaiv tsev, muaj qhov kub thiab txias tsis kam, thiab tsim nyog rau qhov chaw ua haujlwm kub.

05



YE series structural nta



Ncej, tsim cov txheej txheem, cov khoom tseem ceeb: Cov koob no siv lub zog muaj zog cam khwb cia hlau thav duab, ua ke nrog ntsug thiab kab rov tav cua sov dissipation tav los txhim kho cov cua sov kom zoo. Nyob rau hauv cov nqe lus ntawm kev tsim cov txheej txheem, resin xuab zeb molding yog siv los xyuas kom meej qhov zoo nkauj tsos thiab kev ntseeg siab ntawm txhua yam muaj zog. Nws cov khoom tseem ceeb suav nrog stator thiab rotor cores, uas yog ua los ntawm cov ntawv zoo uas tsis tshua muaj silicon steel thiab nruab nrog cov hluav taws xob hluav taws xob hluav taws xob zoo. Tom qab lub tshuab nqus tsev siab (VPI) varnishing kev kho mob, lub winding stator yog lav kom muaj hluav taws xob zoo heev thiab kev ua haujlwm zoo rwb thaiv tsev.

Qhov cua thiab cua txias: Lub tshuab cua thiab cua txias tsim ntawm lub tshuab hluav taws xob no siv cov qauv cua sab hauv thiab sab nraud kom ntseeg tau tias lub cev muaj zog tuaj yeem cuam tshuam cov cua sov thaum lub sijhawm ua haujlwm, yog li txhim kho nws txoj haujlwm kev ntseeg tau. Cov cua hauv cov kav dej muaj xws li cov kiv cua built-in thiab cov hniav rotor, uas ua ke hloov cov cua sov hauv lub cev mus rau cov kav dej txias thiab cov cua txias rau ntawm lub hauv paus lub cev muaj zog. Cov khoom siv hluav taws xob no tuaj yeem nqus tau zoo thiab ua kom muaj cua sov, pab kom tawg cov cua sov mus rau sab nraud ntawm lub cev muaj zog. Tom qab ntawd, cov cua sov ntawm lub hauv paus vaj tse tau zoo dissipated los ntawm cov kiv cua sab nraud ntawm cov cua sab nraud, ntxiv txo qhov kub ntawm lub cev muaj zog. Qhov kev tsim no ua rau lub cev muaj zog kom tswj tau qhov kub thiab txias thaum lub sijhawm ua haujlwm ntev, txhim kho nws txoj haujlwm kev ntseeg siab thiab lub neej.



Rotor: YE series motors feem ntau siv cam khwb cia txhuas lossis cam khwb cia hlau cov ntaub ntawv los ua rotors. Cov ntaub ntawv no muaj cov thermal conductivity zoo thiab txhua yam muaj zog, uas pab tswj kev ua haujlwm ruaj khov ntawm lub cev muaj zog. Lub rotor qauv tsim tsis tsuas yog siv rau hauv tus account nws cov thermal conductivity, tab sis kuj tsom rau qhov sib npaug thiab ua haujlwm ntawm lub rotor. Los ntawm kev ua tib zoo tsim, lub rotor tuaj yeem tswj tau qhov sib npaug zoo ntawm kev kub ceev, yog li txo qis kev vibration thiab suab nrov. Qhov kev tsim no tsis tsuas yog pab txhim kho kev ua tau zoo thiab kev ua haujlwm ntawm lub cev muaj zog, tab sis kuj tseem txuas ntxiv kev pabcuam lub neej ntawm lub cev muaj zog, ua rau nws ua haujlwm ruaj khov thiab ntseeg tau raws li ntau yam kev ua haujlwm.

Stator: Lub stator yog qhov zoo li qub ntawm lub cev muaj zog, suav nrog cov tub ntxhais stator thiab stator winding. Lub stator ntawm YE3 lub cev muaj zog yog ua los ntawm cov ntawv zoo electromagnetic steel los txo cov hlau tsis zoo thiab tooj liab. Nws lub luag haujlwm tseem ceeb yog tsim kom muaj qhov sib nqus, uas cuam tshuam nrog cov hlau nplaum ntawm lub rotor kom ua tiav qhov kev sib hloov ntawm lub cev muaj zog thiab txhim kho kev ua haujlwm ntawm lub cev muaj zog.



Bearings: Lub cev muaj zog bearings yog los ntawm cov npe nrov hauv tsev thiab txawv teb chaws. Rau qhov sib txawv zaus motors, txhim khu kev qha ncej tam sim no thaiv kev ntsuas yog saws. Qhov kev ntsuas no zoo tiv thaiv lub cev muaj zog bearings. Thaum lub sij hawm ua hauj lwm, lub lubricating roj zaj duab xis yuav tsis poob, yog li ua rau lub neej kev pab cuam ntawm bearings thiab ua hauj lwm ntawm no series ntawm motors txhim khu kev qha. Kev siv cov txheej txheem kev tshaj lij thiab cov cuab yeej ua haujlwm siab ua kom ntseeg tau tias kev ua haujlwm raug ntawm lub cev muaj zog nce mus txog qhov loj me. Qhov no ua kom ntseeg tau tias qhov sib txawv ntawm qhov sib txawv ntawm ntau qhov chaw yog nyob rau hauv lub xeev zoo tagnrho thaum lub cev muaj zog sib sau ua ke.



Npog kawg: Raws li ib feem ntawm lub cev muaj zog, YE series kawg npog tuaj yeem tiv thaiv sab hauv rotor, stator, bearings thiab lwm yam tseem ceeb ntawm qhov chaw sab nraud. Lawv tiv thaiv plua plav, dej vapor, khib nyiab, thiab lwm yam los ntawm kev nkag mus rau lub cev muaj zog, yog li txuas ntxiv lub neej kev pabcuam ntawm lub cev muaj zog. YE3 lub cev muaj zog kawg npog feem ntau muaj kev sib khi zoo, uas tuaj yeem tiv thaiv kom tsis txhob muaj cov roj lubricating lossis cov roj insulating, thiab ua kom lub lubrication thiab rwb thaiv tsev hauv lub cev muaj zog. Qhov no pab txhim kho kev ntseeg tau thiab kev nyab xeeb ntawm lub cev muaj zog. Thiab YE3 lub cev muaj zog kawg npog feem ntau yog ua los ntawm lub zog muaj zog aluminium alloy lossis cam khwb cia hlau cov khoom, uas muaj corrosion kuj zoo thiab txhua yam muaj zog. Qhov no ua rau qhov kawg npog kom muaj kev ruaj ntseg hauv kev ua haujlwm hnyav thiab tsis yooj yim cuam tshuam los ntawm ib puag ncig sab nraud.



Technical parameters

Kev ua haujlwm siab thiab kev txuag hluav taws xob: YE2 / 3 / 4 / 5 motors txais cov qauv tsim thiab cov khoom siv siab dua thiab muaj kev ntsuas hluav taws xob ntau dua. Nws optimized magnetic circuit tsim, cov ntaub ntawv tsis tshua muaj thiab txhim kho cua txias system thiab lwm yam technologies zoo txo ​​lub zog noj thiab txhim kho tag nrho cov efficiency ntawm lub cev muaj zog. Piv nrog cov tsoos motors, YE series motors tuaj yeem txuag tau ntau lub zog thiab txo cov nqi tsim khoom raws li tib yam kev ua haujlwm.



Tsis tshua muaj suab nrov: YE series motors tsom rau kev txo cov suab nrov thaum lub sijhawm ua haujlwm hauv kev tsim kho. Los ntawm kev ua kom zoo ntawm cov qauv tsim ntawm lub rotor thiab stator, siv lub suab nrov qis thiab cov ntsaws ruaj ruaj, thiab tswj kev ua haujlwm ntawm lub cev muaj zog, lub suab nrov ntawm YE3 lub cev muaj zog txo qis. Qhov no yog qhov tseem ceeb tshwj xeeb rau cov ntawv thov uas xav tau qhov chaw nyob ntsiag to.



Tsis tshua muaj kev vibration: YE series motors txais kev ntsuas qib siab thev naus laus zis thiab kev co tswj kev siv tshuab kom txo qis kev vibration ntawm lub cev muaj zog thaum ua haujlwm. Los ntawm kev ua tiav thiab kev ntsuas qhov sib npaug, qhov tsis sib npaug hauv lub cev muaj zog raug txo, ua rau lub cev muaj zog ua haujlwm zoo dua, txuas ntxiv kev pabcuam lub neej ntawm cov khoom siv tshuab, thiab tseem txhim kho kev ntseeg tau ntawm cov khoom siv.



Kev ntseeg siab: YE series motors txais cov ntaub ntawv zoo thiab cov txheej txheem tsim khoom, nrog kev ntseeg tau zoo thiab ua haujlwm ntev. Nws precision machining thiab nruj zoo tswj xyuas kom muaj kev ruaj ntseg thiab kev cia siab ntawm lub cev muaj zog, uas tsis yog ib txwm ua rau tsis ua hauj lwm mus sij hawm ntev, zoo heev txo qhov zaus ntawm downtime txij nkawm thiab txhim kho ntau lawm efficiency.



Tus nqi tu qis: Vim muaj kev ntseeg siab thiab lub neej ntev ntawm YE series lub cev muaj zog, nws cov nqi kho mob kuj tsawg. Kev tsim lub cev muaj zog yog qhov yooj yim thiab kev saib xyuas yooj yim dua. Nyob rau tib lub sijhawm, vim kev ua haujlwm ruaj khov, lub voj voog txij nkawm thiab lub sijhawm txij nkawm raug txo, txuag cov nqi tu thiab tib neeg cov peev txheej.



Tsev 12 Rau sab kawg

YOG Technical Parameters

Ncej Loj

H71-400

Rated Voltage

380V~690V

Ntau zaus

50Hz, 60Hz

Tso zis ntau yam

0.18 ~ 560kw

Rwb thaiv tsev

B,F,H

Chav kawm tiv thaiv

IP44, IP54, IP55

Kev sib txuas

≤ 3KW Y,>3 KW △

Lub luag haujlwm

S1

Qhov siab

≯1000m

Ambient Kub

-15 degree ~ +40 degree

Ntau yam ntawm Kev Hloov Kho Zaus

5 ~ 50Hz (Nruam torque), 50 ~ 100Hz (Lub zog tsis tu ncua) 5 ~ 50Hz ( tas li torque), 50 ~ 100Hz (consta ntsaum tso zis)




YE2 Parameters




Cov ntaub ntawv ua haujlwm YE2 2P 50Hz
hom rated zog efficiency
η%(IE2)		 Fais fab xwm txheej
cov φ		 Rated tam sim noA Rated ceev (rpm) Rated torque (Nm) Stall torque
/ ntsuas ceev
Ts/Tn		 Maximum torque /
Rated torque
Tmax/Tn		 Stalled rotor tam sim no /
Rated tam sim no
ls/ib		 hnyav
Kg
kW HP 380V 400V
Sync ceev 3000r/min
YOG2-80M1-2 0.75 1 77.4 0.82 1.8 1.71 2870 2.5 2.3 2.3 6.8 16
YOG2-80M2-2 1.1 1.5 79.6 0.83 2.53 2.4 2875 3.65 2.3 2.3 7.1 18
VE 2-90S-2 1.5 2 81.3 0.84 3.34 3.17 2880 4.97 2.3 2.3 7.3 21
VE 2-90L-2 2.2 3 83.2 0.85 4.73 4.49 2880 7.3 2.3 2.3 7.6 25
YOG2-100L-2 3 4 84.6 0.87 6.19 5.88 2880 9.95 2.2 2.3 7.8 33
YOG2-112M-2 4 5.5 85.8 0.88 8.05 7.65 2915 13.1 2.2 2.3 8.1 40
YOG2-132S1-2 5.5 7.5 87 0.88 10.9 10.4 2935 17.9 2.2 2.3 8.2 59
YOG2-132S2-2 7.5 10 88.1 0.89 14.5 13.8 2930 24.4 2.2 2.3 78 65
YOG2-160M1-2 11 15 89.4 0.89 21 20 2950 35.6 2.2 2.3 7.9 117
YOG2-160M2-2 15 20 90.3 0.89 28.4 26.9 2945 48.6 2.2 2.3 7.9 125
YOG2-160L-2 18.5 25 90.9 0.89 34.7 33 2945 60 2.2 2.3 8 140
YOG2-180M-2 22 30 91.3 0.89 41.1 39.1 2950 71.2 2.2 2.3 8.1 180
YOG2-200L1-2 30 40 92 0.89 55.7 52.9 2965 96.6 2 2.3 7.5 225
YOG2-200L2-2 37 50 92.5 0.89 68.3 64.9 2965 119 2 2.3 7.5 243
VE 2-225M-2 45 60 92.9 0.89 82.7 78.6 2965 145 2.2 2.3 7.5 300
VE 2-250M-2 55 75 93.2 0.89 101 95.7 2975 177 2.2 2.3 7.6 372
YOG2-2805-2 75 100 93.8 0.89 136 130 2975 241 1.8 2.3 6.9 520
VE 2-280M-2 90 125 94.1 0.89 163 155 2975 289 1.8 2.3 6.9 560
VE 2-315S-2 110 150 94.3 0.9 197 187 2985 352 1.8 2.2 7 940
YOG2-315M-2 132 180 94.6 0.9 236 224 2985 422 1.8 2.2 7 990
YOG2-315L1-2 160 220 94.8 0.91 282 268 2985 512 1.8 2.2 7.1 1050
YOG2-315L-2 185 250 94.9 0.91 325 309 2985 592 1.8 2.2 7.1 1080
YOG2-315L2-2 200 270 95 0.91 351 334 2985 640 1.8 2.2 7.1 1140
VE 2-355M1-2 220 300 95 0.91 387 367 2985 704 1.6 2.2 7.1 1630
YOG2-355M2-2 250 340 95 0.91 439 417 2985 800 1.6 2.2 7.1 1650
YOG2-355M3-2 280 375 95 0.91 492 467 2985 896 1.6 2.2 7.2 1820
VE 2-355L-2 315 430 95 0.91 554 526 2985 1008 1.6 2.2 7.2 1850
YOG2-355L1-2 355 470 95 0.91 624 593 2985 1136 1.6 2.2 7.2 2100
YOG2-355L2-2 375 500 95 0.91 659 626 2985 1200 1.6 2.2 7.2 2350



Performance dataYE2 4P 50Hz
Hom Rated zog Kev ua tau zoo η%
(E2)		 Fais fab xwm txheej
cov φ		 Rated tam sim no A Rated ceev (rpm) Rated torque
(Nm)		 Stalling torque / ntsuas torque
Ts/Tn		 Maximum torque / ntsuas torque
Tmax/Tn		 Stalling tam sim no / ntsuas tam sim no
Yog/In		 Qhov hnyav
Kg
kW HP 380V 400V
Sync ceev 1500r/min
YOG2-80M1-4 0.55 0.75 77.1 0.75 1.45 1.37 1400 3.75 2.3 2.3 6.4 16
YOG2-80M2-4 0.75 1 79.6 0.76 1.88 1.79 1430 5.01 2.3 2.3 6.4 21
YOG2-90S-4 1.1 1.5 81.4 0.77 2.67 2.53 1430 7.35 2.3 2.3 6.6 24
YOG2-90L-4 1.5 2 82.8 0.78 3.53 3.35 1430 10 2.3 2.3 6.7 29
YOG2-100L1-4 2.2 3 84.3 0.8 4.96 4.71 1440 14.6 2.3 2.3 7.3 37
YOG2-100L2-4 3 4 85.5 0.81 6.58 6.25 1440 19.9 2.3 2.3 7.5 41
YOG2-112M-4 4 5.5 86.6 0.81 8.66 8.23 1455 26.3 2.3 2.3 7.5 47
YOG2-132S-4 5.5 7.5 87.7 0.82 11.6 11 1465 35.9 2 2.3 7.5 62
YOG2-132M-4 7.5 10 88.7 0.83 15.5 14.7 1465 48.9 2 2.3 7.3 75
YOG2-160M-4 11 15 89.8 0.83 22.4 21.3 1470 71.5 2 2.3 7.4 116
YOG2-160L-4 15 20 90.6 0.84 29.9 28.4 1470 97.4 2 2.3 7.5 136
YOG2-180M-4 18.5 25 91.2 0.85 36.3 34.4 1470 120 2 2.3 7.6 173
YOG2-180L-4 22 30 91.6 0.85 42.9 40.8 1470 143 2.1 2.3 7.7 188
YOG2-200L-4 30 40 92.3 0.85 58.1 55.2 1475 194 2.1 2.3 7.1 236
YOG2-225S-4 37 50 92.7 0.86 70.5 67 1480 239 2.1 2.3 7.3 292
YOG2-225M-4 45 60 93.1 0.86 85.4 81.1 1480 290 2.2 2.3 7.3 326
YOG2-250M-4 55 75 93.5 0.86 104 98.7 1485 354 2.2 2.3 7.3 389
YOG2-280S-4 75 100 94 0.87 139 132 1490 481 2.2 2.3 6.8 520
YOG2-280M-4 90 125 94.2 0.88 165 157 1490 577 2.2 2.3 6.9 610
YOG2-315S-4 110 150 94.5 0.89 199 189 1490 705 2.1 2.2 6.9 860
YOG2-315M-4 132 180 94.7 0.89 238 226 1490 846 2.1 2.2 6.9 950
YOG2-315L1-4 160 220 94.9 0.9 285 270 1490 1026 2.1 2.2 6.9 1020
YOG2-315L-4 185 250 95 0.9 329 312 1490 1186 2.1 2.2 6.9 1060
YOG2-315L2-4 200 270 95.1 0.9 355 337 1490 1282 2.1 2.2 6.9 1120
YOG2-355M1-4 220 300 95.1 0.9 391 371 1490 1410 2.1 2.2 6.9 1660
YOG2-355M2-4 250 340 95.1 0.9 444 422 1495 1597 2 2.2 6.9 1680
YOG2-355M3-4 280 375 95.1 0.9 497 472 1495 1789 2 2.2 6.9 1820
YOG2-355L-4 315 430 95.1 0.9 559 531 1495 2012 2 2.2 6.9 1880
YOG2-355L1-4 355 470 95.1 0.89 637 605 1495 2268 1.7 2.2 6.5 2170
YOG2-355L2-4 375 500 95.1 0.88 681 647 1495 2395 1.7 2.2 6.5 2270



Performance dataYE2 6P 50Hz
Hom Rated zog Kev ua tau zoo
η%(E2)		 Fais fab xwm txheej
cov φ		 Rated tam sim no A Rated ceev
(rpm)		 Rated torque
(Nm)		 Stalling torque / ntsuas torque
Ts/Tn		 Maximum torque / ntsuas torque
Tmax/Tn		 Stalling tam sim no / ntsuas tam sim no
Yog/In		 Qhov hnyav
Kg
kW HP 380V 400V
  Synchronous ceev 1000r / min
YOG2-80M1-6 0.37 0.5 67.6 0.7 1.19 1.13 940 3.76 1.9 2 5.5 16
YOG2-80M2-6 0.55 0.75 73.1 0.72 1.59 1.51 940 5.59 1.9 2 5.5 17
YOG2-90S-6 0.75 1 75.9 0.71 2.11 2.01 945 7.58 2 2.1 5.8 24
YOG2-90L-6 1.1 1.5 78.1 0.72 2.97 2.82 950 11.1 2 2.1 5.9 27
YOG2-100L-6 1.5 2 79.8 0.72 3.97 3.77 950 15.1 2 2.1 5.9 34
YOG2-112M-6 2.2 3 81.8 0.72 5.68 5.39 965 21.8 2 2.1 6.2 38
YOG2-132S-6 3 4 83.3 0.72 7.6 7.22 975 29.4 2 2.1 6.4 55
YOG2-132M1-6 4 5.5 84.6 0.74 9.71 9.22 975 39.2 2 2.1 6.6 65
YOG2-132M2-6 5.5 7.5 86 0.75 13 12.3 975 53.9 2 2.1 6.8 75
YOG2-160M-6 7.5 10 87.2 0.78 16.8 15.9 980 73.1 2 2.1 6.8 108
YOG2-160L-6 11 15 88.7 0.79 23.9 22.7 980 107 2 2.1 6.9 115
YOG2-180L-6 15 20 89.7 0.82 31 29.4 980 146 2 2.1 7.3 175
YOG2-200L1-6 18.5 25 90.4 0.8 38.9 36.9 985 179 2 2.1 7.2 223
YOG2-200L2-6 22 30 90.9 0.81 45.4 43.1 985 213 2 2.1 7.3 232
YOG2-225M-6 30 40 91.7 0.82 60.6 57.6 985 291 2 2.1 6.8 300
YOG2-250M-6 37 50 92.2 0.83 73.5 69.8 985 359 2 2.1 7 385
YOG2-2805-6 45 60 92.7 0.85 86.8 82.4 990 434 2 2 7.2 478
YOG2-280M-6 55 75 93.1 0.86 104 99.2 990 531 2 2 7.2 553
YOG2-315S-6 75 100 93.7 0.84 145 138 990 723 2 2 6.5 860
YOG2-315M-6 90 125 94 0.85 171 163 990 868 2 2 6.6 950
YOG2-315L1-6 110 150 94.3 0.85 209 198 990 1061 2 2 6.6 1120
YOG2-315L2-6 132 180 94.6 0.86 247 234 990 1273 2 2 6.6 1180
YOG2-355M1-6 160 220 94.8 0.86 298 283 990 1543 2 2 6.7 1650
YOG2-355M-6 185 250 94.9 0.86 344 327 995 1776 2 2 6.8 1750
YOG2-355M2-6 200 270 95 0.86 372 353 995 1920 2 2 6.8 1800
YOG2-355M3-6 220 300 95 0.86 409 389 995 2112 2 2 6.8 1860
YOG2-355L-6 250 340 95 0.86 465 442 995 2399 2 2 6.8 1900
YOG2-355L1-6 280 375 95 0.86 521 495 995 2687 2 2 6.8 2550
YOG2-355L2-6 315 430 95 0.86 586 557 995 3023 2 2 6.8 2720



Cov ntaub ntawv ua haujlwm YE2 8P 50Hz
Hom Rated tso zis Ua tau zoo
η%(IE2)		 Fais fab xwm txheej
cov φ		 Rated tam sim no
A		 Rated ceev
(rpm)		 Rated torque
(Nm)		 Ts/Tn Tmax/Tn ls/ib Qhov hnyav
Kg
kW HP 380V 400V
Sync ceev ceev 750r / min
YOG2-80M1-8 0.18 0.25 45.9 0.61 0.98 0.93 660 2.6 1.8 1.9 3.3 17
YOG2-80M2-8 0.25 0.34 50.6 0.61 1.23 1.17 660 3.62 1.8 2 3.3 18
YOG2-905-8 0.37 0.5 56.1 0.61 1.64 1.56 680 5.2 1.8 2 4 25
YOG2-90L-8 0.55 0.75 61.7 0.61 2.22 2.11 675 7.78 1.8 2 4 27
YOG2-100L1-8 0.75 1 66.2 0.67 2.57 2.44 705 10.1 1.8 2 4 34
YOG2-100L2-8 1.1 1.52 70.8 0.69 3.42 3.25 700 15 1.8 2 5 39
YOG2-112M-8 1.5 3 74.1 0.69 4.46 4.23 695 20.6 1.8 2 6 52
YOG2-132S-8 2.2 4 77.6 0.71 6.07 5.76 695 30.2 1.8 2 6 65
YOG2-132M-8 3 4 80 0.73 7.81 741 690 41.5 1.8 2 6 81
YOG2-160M1-8 4 5.5 81.9 0.73 10.2 966 725 52.7 1.9 2 6 93
YOG2-160M2-8 5.5 7.5 83.8 0.74 13.5 12.8 725 72.4 2 2 6 110
YOG2-160L-8 7.5 10 85.3 0.75 17.8 16.9 720 99.5 2 2 6 130
YOG2-180L-8 11 15 86.9 0.76 25.3 24 725 145 2 2 6.6 170
YOG2-200L-8 15 20 88 0.76 34.1 32.4 725 198 2 2 6.6 215
YOG2-225S-8 18.5 25 88.6 0.76 41.7 39.7 725 244 1.9 2 6.6 260
YOG2-225M-8 22 30 89.1 0.78 48.1 45.7 730 288 1.9 2 6.6 290
YOG2-250M-8 30 40 89.8 0.79 64.3 61 725 395 1.9 2 6.6 389
YOG2-2805-8 37 50 90.3 0.79 78.8 74.9 740 477.5 1.9 2 6.6 550
YOG2-280M-8 45 60 90.7 0.79 95.4 90.7 740 581 1.9 2 6.6 650
YOG2-3155-8 55 75 91 0.81 113 108 735 715 1.8 2 6.6 930
YOG2-315M-8 75 100 91.6 0.81 154 146 735 974 1.8 2 6.6 1040
YOG2-315L1-8 90 125 91.9 0.82 181 172 735 1169 1.8 2 6.6 1060
YOG2-315L2-8 110 150 92.3 0.82 221 210 740 1420 1.8 2 6.4 1070
YOG2-355M1-8 132 180 92.6 0.82 264 251 740 1704 1.8 2 6.4 1530
YOG2-355M2-8 160 220 93 0.82 319 303 740 2065 1.8 2 6.4 1570
YOG2-355L-8 200 270 93.5 0.83 392 372 740 2581 1.8 2 6.4 1820




YE3 Parameters




Cov ntaub ntawv qhia 380V 50Hz
Hom zog
KW		 Ceev
r / min		 Qhov hluav taws xob
V		 Tam sim no
A		 Kev ua tau zoo
Eff.%		 Fais fab xwm txheej
P F		 ntsuas torque
N m		 Stall torque / ntsuas torque
TstTN		 Stall tam sim no / ntsuas tam sim no
TSI		 Maximum torque / ntsuas torque
TmaxTN		 Suab nrov
dB (A)
Synchronous ceev 3000r / min
YOG3-80M1-2 0.75 2905 220△/380Y 3.0/1.7 80.7 0.82 2.47 2.3 7.0 2.3 62
YOG3-80M2-2 1.1 2905 220△/380Y 4.2/2.4 82.7 0.83 3.62 2.2 7.6 2.3 62
YOG3-90S-2 1.5 2905 220A/380Y 5.5/3.2 84.2 0.84 4.93 2.2 7.9 2.3 67
YOG3-90L-2 2.2 2890 220△/380Y 7.9/4.6 85.9 0.85 7.27 2.2 7.9 2.3 67
YOG3-100L-2 3 2900 220△/380Y 10.4/6.0 87.1 0.87 9.88 2.2 8.5 2.3 74
YOG3-112M-2 4 2915 380△/660Y 7,8/4.5 88.1 0.88 13.10 2.2 8.5 2.3 77
YOG3-132S1-2 5.5 2920 380△/660Y 10.6/6.1 89.2 0.88 18.00 2.0 8.5 2.3 79
YOG3-132S2-2 7.5 2915 380△/860Y 14.4/8.3 90.1 0.88 24.60 2.0 8.5 2.3 79
YOG3-160M1-2 11 2940 380A/660Y 20.6/11.9 91.2 0.89 35.70 2.0 8.5 2.3 81
YOG3-160M2-2 15 2940 380△/660Y 27.9/16.0 91.9 0.89 48.7 2.0 8.5 2.3 81
YOG3-160L-2 18.5 2940 380A/660Y 34.2/19.7 92.4 0.89 60.1 2.0 8.5 2.3 81
YOG3-180M-2 22 2950 380A/660Y 40.5/23.3 92.7 0.89 71.2 2.0 8.5 2.3 83
YOG3-200L1-2 30 2955 380△/660Y 54.9/31.6 93.3 0.89 97 2.0 8.5 2.3 84
YOG3-200L2-2 37 2955 380A/660Y 67,4/38.8 93.7 0.89 120 2.0 8.5 2.3 84
YOG3-225M-2 45 2965 380△/660Y 80.8/46.5 94.0 0.90 145 2.0 8.0 2.3 86
YOG3-250M-2 55 2970 380△/660Y 98.5/56.7 94.3 0.90 177 2.0 8.0 2.3 89
YOG3-280S-2 75 2970 380△/660Y 134/77.0 94.7 0.90 241 1.8 7.5 2.3 91
YOG3-280M-2 90 2970 380△/860Y 160/92.1 95.0 0.90 289 1.8 7.5 2.3 91
YOG3-315S-2 110 2980 380△/660Y 195/112 95.2 0.90 353 1.8 7.5 2.3 92
YOG3-315M-2 132 2980 380△/660Y 234/134 95.4 0.90 423 1.8 7.5 2.3 92
YOG3-315L1-2 160 2980 380△/660Y 279/161 95.6 0.91 513 1.8 7.5 2.3 92
YOG3-315L2-2 185 2980 380A/660Y 323/186 95.7 0.91 593 1.8 7.5 2.3 92
YOG3-315L3-2 200 2980 380△/660Y 349/201 95.8 0.91 641 1.8 7.5 2.2 92
YOG3-355M1-2 220 2985 380△/660Y 383/221 95.8 0.91 704 1.8 7.5 2.2 100
YOG3-355M2-2 250 2985 380A/660Y 436/251 95.8 0.91 800 1.6 7.5 2.2 100
YOG3-355L1-2 280 2985 380△/660Y 488/281 95.8 0.91 896 1.6 7.5 2.2 100
YOG3-355L2-2 315 2985 380△/860Y 549/316 95.8 0.91 1008 1.6 7.5 2.2 100
YOG3-355L3-2 355 2985 380△/660Y 619/356 95.8 0.91 1136 1.6 7.5 2.2 100



Technical data table
Hom Hwj chim
kW		 Ceev
r / min		 Qhov hluav taws xob
V		 Tam sim no
A		 Kev ua tau zoo
Eff%		 Fais fab xwm txheej
P.F		 ntsuas torque
Nm		 Stall torque / ntsuas torque
TstTN		 Stall tam sim no / ntsuas tam sim no
IstIN		 Maximum torque / ntsuas torque
TmaxTN		 Suab nrov
dB (A)
Synchronous ceev 1500r / min
VE 3-80M1-4 0.55 1435 220△/380Y 2.4/1.4 80.8 0.75 3.66 2.4 6.60 23.00 56
YOG3-80M2-4 0.75 1436 220△/380Y 3.2/1.8 82.5 0.75 4.99 2.3 6.60 23.00 56
YOG3-908-4 1.10 1425 220△/380Y 4.5/2.6 84.1 0.76 7.37 2.3 6.80 23.00 59
YOG3-90L-4 1.50 1425 220△/380Y 6.0/3.5 85.3 0.77 10.10 2.3 7.00 23.00 59
YOG3-100L1-4 2.20 1440 220△/380Y 8.2/4.8 86.7 0.81 14.60 2.3 7.60 23.00 64
YOG3-100L2-4 3.00 1440 220△/380Y 10.9/6.3 87.7 82.00 19.90 2.3 7.60 23.00 64
VE 3-112M-4 4.00 1450 380△/660Y 8.4/4.8 88.6 0.82 26.30 2.2 7.80 23.00 66
YOG3-1328-4 5.50 1465 280△/660Y 11.2/6.5 89.6 3.00 35.90 2.0 7.90 23.00 71
YOG3-132M-4 7.50 1465 200△/600Y 15.0/8.6 90.4 0.84 48.90 2.2 7.50 23.00 71
VE 3-160M-4 11.00 1470 380△/660Y 21.5/12.4 91.4 85.00 71.50 2.2 7.70 23.00 73
VE 3-160L-4 15.00 1470 380△/660Y 28.8/16.6 92.1 0.86 97.40 2.2 7.80 23.00 73
YOG3-180M-4 10.50 1470 380△/660Y 35.3/20.3 92.6 0.86 120.00 2.0 7.80 23.00 76
VE 3-100L-4 22.00 1470 380△/660Y 41.8/24.1 93.0 0.85 143.00 2.0 7.80 23.00 76
YOG3-200L-4 30.00 1475 380△/660Y 55.6/32.6 93.6 0.86 194.00 2.0 7.30 23.00 76
YOG3-2258-4 37.00 1480 380△/660Y 69.6/40.1 93.9 0.86 239.00 2.2 7.40 23.00 78
YOG3-2251-4 45.00 1480 380△/660Y 84.4/40.6 94.2 0.86 290.00 2.0 7.40 23.00 78
VE 3-250M-4 55.00 1485 380△/660Y 103/59.1 94.6 88.00 354.00 2.2 7.40 23.00 79
YOG3-2808-4 75.00 1485 380△/660Y 136/78.5 95.0 0.88 482.00 2.0 6.90 23.00 80
VE 3-200M-4 90.00 146 380△/660Y 163/94.0 95.2 0.00 579.00 2.0 6.90 23.00 80
YOG3-3158-4 110.00 1490 380△/660Y 197/113 95.4 0.89 705.00 2.0 7.00 22.00 88
VE 3-315M-4 132.00 1490 380△/660Y 236/136 95.6 89.00 846.00 2.0 7.00 22.00 88
YOG3-315L1-4 160.00 1490 380△/660Y 285/164 95.8 89.00 1026.00 2.0 7.10 22.00 88
YOG3-315L2-4 185.00 1490 200△/660Y 329/190 95.9 89.00 1186.00 2.0 7.10 22.00 88
YOG3-315L3-4 200.00 1490 300△/660Y 352/202 96.0 0.90 1282.00 2.0 7.10 22.00 88
YOG3-355M1-4 220.00 1490 380△/660Y 387/223 96.0 0.90 1410.00 2.0 7.10 22.00 95
YOG3-355M2-4 250.00 1490 380△/660Y 440/253 96.0 0.90 1602.00 2.0 7.10 22.00 95
YOG3-355L1-4 290.00 1490 380△/660Y 492/283 96.0 0.90 1795.00 2.0 7.10 22.00 95
YOG3-355L2-4 315.00 1490 380△/660Y 554/319 96.0 0.90 2019.00 2.0 7.10 22.00 96
YOG3-355L3-4 355.00 1490 380△/660Y 624/359 96.0 0.90 2275.00 2.0 7.00 20.00 96
Synchronous ceev 1000r / min
YOG3-90S-6 0.75 955 220△/380Y 3.5/2.0 78.9 0.71 7.60 2.0 6.00 2.10 57
YOG3-90L-6 1.10 950 220△/380Y 4/9/2.8 81.0 0.73 11.10 2.0 6.00 2.10 57
VE 3-100L-6 1.50 960 220△/880Y 6.5/3.8 82.5 0.73 14.90 2.0 6.50 2.10 61
YOG3-112M-6 2.20 970 220△/880Y 9.3/5.4 84.3 0.74 21.70 2.0 6.60 2.10 65
YOG3-1325-6 3.00 970 220△/380Y 12.4/7.2 85.6 0.74 29.50 1.9 6.80 2.10 69
YOG3-132M1-6 4.00 970 380△/660Y 9.5/5.5 86.8 0.74 39.40 1.9 6.80 2.10 69



Technical data table
380V 50Hz
Hom Hwj chim
KW		 Ceev
r / min		 Qhov hluav taws xob
V		 Tam sim no
I		 Kev ua tau zoo
Eff%		 Fais fab xwm txheej
P.F		 ntsuas torque
N.m		 Stall torque / ntsuas torque
TstTN		 Stall tam sim no / ntsuas tam sim no
IstIN		 Maximum torque / ntsuas torque
TmaxTN		 Suab nrov
dB (A)
Synchronous ceev 1000r / min
YOG3-132M2-6 5.5 970 380△/660Y 12.7/7.3 88.0 0.75 54.1 2.0 7.0 2.1 69
YOG3-160M-6 7.5 975 380△/660Y 16.2/9.3 89.1 0.79 73.5 2.0 7.0 2.1 73
YOG3-160L-6 11 975 380△/660Y 23.1/13.3 90.3 0.80 108 2.0 7.2 2.1 73
YOG3-180L-6 15 980 380△/660Y 30.9/17.8 91.2 0.81 146 2.0 7.3 2.1 73
YOG3-200L1-6 18.5 985 380△/660Y 37.8/21.8 91.7 0.81 179 2.0 7.3 2.1 73
YOG2-200L2-6 22 985 380△/660Y 44.8/25.8 92.2 0.81 213 2.0 7.4 2.1 73
YOG3-225M-6 30 985 380△/660Y 59.1/34.1 92.9 0.83 291 2.0 6.9 2.1 74
YOG3-250M-6 37 985 380△/660Y 71.7/41.3 93.3 0.84 359 2.0 7.1 2.1 76
YOG3-280S-6 45 990 380△/660Y 85.8/49.4 93.7 0.85 434 2.0 7.3 2.0 78
YOG2-280M-6 55 990 380△/660Y 103/59.5 94.1 0.88 531 2.0 7.3 2.0 78
YOG3-315S-6 75 990 380△/660Y 143/82.6 94.6 0.84 723 2.0 6.6 2.0 83
YOG3-315M-6 90 990 380△/660Y 170/97.6 94.9 0.85 868 2.0 6.7 2.0 83
YOG2-315L1-6 110 990 380△/660Y 207/119 95.1 0.85 1061 2.0 6.7 2.0 83
YOG3-315L2-6 132 990 380△/660Y 244/141 96.4 0.85 1273 2.0 6.8 2.0 83
YOG3-355M3-8 160 990 380△/660Y 296/170 96.6 0.86 1543 1.8 6.8 2.0 85
YOG3-355L1-8 185 990 380△/660Y 342/197 95.7 0.85 1785 1.8 6.8 2.0 85
YOG3-355L2-8 200 990 380△/660Y 265/210 96.8 0.85 1929 1.8 6.8 2.0 85
YOG3-355L1-6 220 990 380△/660Y 401/231 95.8 0.87 2122 1.8 6.8 2.0 85
YOG3-355L2-8 250 990 380△/660Y 456/262 95.8 0.87 2412 1.8 6.8 2.0 85
YOG3-355L3-8 280 990 380△/660Y 510/294 95.8 0.87 2701 1.8 6.8 2.0 85
YOG3-355L4-8 315 990 380△/660Y 574/331 95.8 0.87 3039 1.8 6.8 2.0 85
Synchronous ceev 750r / min
PEB 3-132S-8 2.2 730 220△/380Y 9.9/5.7 81.9 0.71 28.8 1.8 6.7 2.0 64
YOG3-132M-8 3 730 220△/380Y 12.9/7.5 83.5 0.73 39.2 1.8 6.9 2.0 64
YOG3-160M1-8 4 725 380△/660Y 9.8/5.7 84.8 0.73 52.7 1.9 6.9 2.0 68
YOG3-160M2-8 5.5 725 380△/660Y 13.1/7.5 86.2 0.74 72.4 1.9 6.9 2.0 68
YOG3-160L-8 7.5 725 806△/660Y 17.4/10.0 87.3 0.75 98.8 1.9 6.6 2.0 68
YOG3-180L-8 11 725 380△/660Y 26.2/14.5 88.6 0.75 145 2.0 6.6 2.0 70
YOG3-200L-8 15 725 380△/660Y 33.5/19.3 88.6 0.76 196 2.0 6.8 2.0 73
VE 3-225S-8 18.5 735 380△/660Y 41.0/23.6 90.1 0.76 240 1.9 6.8 2.0 73
YOG3-225M-8 22 735 380△/660Y 47.3/27.2 90.6 0.78 266 1.9 7.0 2.0 73
YOG3-250M-8 30 736 380△/660Y 63.2/36.4 91.3 0.79 390 1.9 6.7 2.0 75
VE 3-280S-8 37 740 380△/660Y 77.5/44.6 91.8 0.79 478 1.9 6.7 2.0 76
YOG3-280M-8 45 740 380△/660Y 93.9/54.0 92.2 0.79 581 1.9 6.7 2.0 76
TE3-315S-8 55 740 380△/660Y 112/64.2 92.5 0.81 710 1.8 6.8 2.0 82
YOG 3-315MB 75 740 380△/660Y 151/87.0 93.1 0.81 968 1.8 6.3 2.0 82
YOG3-315L1-8 90 740 380△/660Y 179/103 93.4 0.82 1161 1.8 6.4 2.0 82
YOG3-315L2-8 110 740 380△/660Y 218/126 93.7 0.82 1420 1.8 6.4 2.0 82



Kev cog lus los muab cov neeg siv khoom nrog cov kev pabcuam zoo tshaj plaws thiab muaj txiaj ntsig zoo thiab cov kev daws teeb meem zoo tshaj plaws tsav tsheb
Technical data table

Hom		 Hwj chim
KW		 Ceev
r / min		 Ceev
V		 Tam sim no
A		 Kev ua tau zoo
Eff.%		 Fais fab xwm txheej
P.F		 ntsuas torque
N.m		 Stall torque / ntsuas torque
TstTN		 Stall tam sim no / ntsuas tam sim no
IstIN		 Maximum torque / ntsuas torque
TmaxTN		 Suab nrov
dB (A)
Synchronous ceev 750r / min
YOG3-355M1-8 132 745 380△/660Y 260/150 94.0 0.82 1692 1.8 6.4 2.0 90
YOG3-355M2-8 160 745 380△/660Y 314/181 94.3 0.82 2051 1.8 6.4 2.0 90
YOG3-355L1-8 200 745 380△/660Y 387/223 94.6 0.83 2564 1.8 6.4 2.0 90
YOG3-355L2-8 220 745 380△/660Y 426/245 94.6 0.83 2820 1.8 6.4 2.0 90
YOG3-355L3-8 250 745 380△/660Y 484/279 94.6 0.83 3205 1.8 6.4 2.0 90
YOG3-355L4-8 250 745 380△/660Y 484/279 94.6 0.83 3205 1.8 6.4 2.0 90
Synchronous ceev 600r / min
YOG3-315S-10 45 590 380△/660Y 99.1/57.1 92.0 0.75 728 1.5 6.2 2.0 90
YOG3-315M-10 55 590 380A/660Y 121/69.7 92.0 0.75 890 1.5 6.2 2.0 90
YOG3-315L1-10 75 590 380△/660Y 162/93.0 92.8 0.76 1214 1.5 5.8 2.0 90
YOG3-315L2-10 90 590 380△/660Y 191/110 93.0 0.77 1457 1.5 5.9 2.0 90
YOG3-355M1-10 110 595 380△/660Y 230/132 93.3 0.78 1766 1.3 6.0 2.0 90
YOG3-355M2-10 132 595 380△/660Y 274/158 93.8 0.78 2119 1.3 6.1 2.0 90
YOG3-355L1-10 160 595 380△/660Y 332/191 93.8 0.78 2568 1.3 6.1 2.0 90



Installation qhov ntev Tag nrho qhov ntev
A B C D E F G H K AA BB HA AB HD H AD L
25 100 50 19 40 6 15.5 80 10 34 142 10 160 170 142 222 300
40 100 58 24 50 8 20.0 90 10 36 165 12 176 180 152 242 345
140 125 56 24 50 8 20.0 90 10 38 180 12 176 180 152 242 360
160 140 63 28 60 8 24.0 100 12 40 203 14 200 206 168 288 415
190 140 70 28 60 8 24.0 112 12 45 214 15 230 226 181 293 440
216 140 89 38 80 10 33.0 132 12 55 224 15 262 270 201 333 505
216 178 89 38 80 10 33.0 132 12 55 262 18 262 270 201 333 545
254 210 108 42 110 12 37.0 160 15 65 304 20 314 320 260 420 658
254 254 108 42 110 12 37.0 160 15 65 334 20 314 320 260 420 685
279 241 121 48 110 14 42.5 180 15 70 349 22 349 360 270 450 720
279 279 121 48 110 14 42.5 180 15 70 397 22 349 360 270 450 770
318 305 133 55 110 16 49.0 200 19 70 369 25 388 400 306 506 780
358 286 149 60 140 18 53.0 225 19 75 368 20 431 450 330 555 820
356 311 49 55 110 16 49.0 225 19 75 393 28 431 450 330 555 815
356 311 149 60 140 18 53.0 225 19 75 393 28 431 450 330 565 845
406 349 168 60 140 18 53.0 250 24 80 445 30 484 485 361 611 915
405 349 158 65 140 18 58.0 250 24 80 445 30 484 485 361 611 918
457 388 190 65 140 18 58.0 280 24 85 405 36 542 560 390 670 985
457 388 190 75 140 20 67.5 280 24 85 485 35 642 550 390 670 985
457 419 90 65 140 18 58.0 280 24 85 536 35 542 550 390 670 1035
457 419 190 75 140 20 67.5 280 24 85 536 36 642 560 390 670 1035
508 406 216 65 140 18 58.0 315 28 120 570 45 628 630 520 835 1205
508 406 216 80 170 22 71.0 315 28 120 570 45 622 630 520 835 1235
508 457 216 65 140 18 58.0 315 28 120 680 45 628 630 520 835 1315
508 487 216 80 170 22 71.0 315 28 120 600 45 628 630 520 835 1345
508 508 216 65 140 18 58.0 315 28 120 680 45 628 630 620 835 1315
508 508 216 80 170 22 71.0 315 28 120 580 45 628 630 520 835 1245
610 560 254 75 140 20 67.5 366 28 130 750 52 728 715 625 980 1515
610 560 254 95 170 25 86.0 356 28 130 780 52 726 715 825 980 1550
610 630 254 75 140 20 67.5 355 28 130 750 52 728 715 625 9B0 1515
610 630 254 75 140 20 67.5 356 28 130 750 52 726 715 825 900 1615
610 630 254 95 170 26 86.0 386 28 130 750 52 726 715 626 980 1550
610 630 254 95 170 26 86.0 365 28 130 750 52 726 715 626 980 1650



Installation qhov ntev Tag nrho qhov ntev
D E F G W N P R S T AC AD HF L
19 40 6 15.5 165 130 200 0 4-φ12 3.5 165 142 242 300
24 50 8 20 165 130 200 0 4-φ12 3.5 180 152 252 345
24 50 8 20 165 130 200 0 4-φ12 3.5 180 152 252 360
28 60 8 24 215 180 250 0 4-φ15 4 205 168 293 415
28 60 8 24 215 180 250 0 4-φ15 4 225 181 306 440
38 80 10 33 265 230 300 0 4-φ15 4 270 201 351 505
38 80 10 33 265 230 300 0 4-φ15 4 270 201 351 545
42 110 12 37 300 250 350 0 4-φ19 5 320 260 435 655
42 110 12 37 300 250 350 0 4-φ19 5 320 260 435 685
48 110 14 42.5 300 250 350 0 4-φ19 5 360 270 445 720
48 110 14 42.5 300 250 350 0 4-φ19 5 360 270 445 770
55 110 16 49 350 300 400 0 4-φ19 5 400 306 506 780
60 140 18 53 400 350 450 0 8-φ19 5 450 330 555 820
55 110 16 49 400 350 450 0 8-φ19 5 450 330 555 815
60 140 18 53 400 350 450 0 8-φ19 5 450 330 555 845
60 140 18 53 500 450 550 0 8-φ19 5 510 361 636 915
65 140 18 58 500 450 550 0 8-φ19 5 510 361 636 915
65 140 18 58 500 450 550 0 8-φ19 5 550 390 665 985
75 140 20 67.5 500 450 550 0 8-φ19 5 550 390 665 985
65 140 18 58 500 450 550 0 8-φ19 5 550 390 865 1035
75 140 20 67.5 500 450 550 0 8-φ19 5 550 390 665 1035



Ncej
Pole s		 Installation qhov ntev Tag nrho qhov ntev
D E F G M N P R S T AC AD HF L
8 awm 2,4,6,8 19 40 6 15.5 100 80 120 0 4-M6 3 165 142 242 300
908 2,4,6,8 24 50 8 20 115 95 140 0 4-M8 3 180 152 252 345
9 ua DL 2,4,6,8 24 50 8 20 115 95 140 0 4-M8 3 180 152 252 380
100L 2,4,6,8 28 60 8 24 130 110 160 0 4-M8 3.5 205 168 293 415
112M 2,4,6,8 28 60 8 24 130 110 160 0 4-M8 3.5 225 181 306 440



Ncej Pole s Installation qhov ntev Tag nrho qhov ntev
A B C D E F G H K W N P R S T AA BB HA AB AC AD HD L
80M 2,4,6,8 125 100 50 19 40 6 15.5 80 10 100 80 120 0 4-M6 3 34 142 10 160 165 142 222 300
90S 2,4,6,8 140 100 56 24 50 8 20 90 10 115 95 140 0 4-M8 3 36 165 12 176 180 152 242 345
90L 2,4,6,8 140 125 56 24 50 8 20 90 10 115 95 140 0 4-M8 3 36 180 12 176 180 152 242 360
100L 2.4,6,8 160 140 63 28 60 8 24 100 12 130 110 160 0 4-M8 3.5 40 203 14 200 205 168 268 415
112M 2,4,6,8 190 140 70 28 60 8 24 112 12 130 110 160 0 4-M8 3.5 45 214 15 230 225 181 293 440



Installation qhov ntev Tag nrho qhov ntev
A B C D E F G H R M N P R S T AA BB HA AB AC AD HD L
125 100 50 19 40 6 15.5 80 10 165 130 200 0 4-φ12 3.5 34 142 10 160 165 142 222 300
140 100 56 24 50 8 20.0 90 10 165 130 200 0 4-φ12 3.5 36 165 12 176 180 152 242 345
140 125 56 24 50 8 20.0 90 10 165 130 200 0 4-φ12 3.5 36 180 12 176 180 52 242 350
160 140 63 28 60 8 24.0 100 12 215 180 250 0 4-φ15 4.0 40 203 14 200 205 168 266 415
190 140 70 28 60 8 24.0 112 12 215 180 250 0 4-φ15 4.0 45 214 15 230 225 181 293 440
216 140 89 38 80 10 33.0 132 12 265 230 300 0 4-φ15 4.0 55 224 15 282 270 201 333 505
216 178 89 38 80 10 33.0 132 12 265 230 300 0 4-φ15 4.0 55 282 18 262 270 201 333 545
254 210 108 42 110 12 37.0 160 18 300 250 360 0 4-φ19 5.0 65 304 20 314 320 260 420 655
254 254 108 42 110 12 37.0 160 15 300 250 350 0 4-φ19 5.0 65 334 20 314 320 280 420 685
279 241 121 48 110 14 42.5 180 15 300 250 250 0 4-φ19 5.0 70 349 22 349 350 270 450 720
279 279 121 48 110 14 42.5 180 15 300 250 350 0 4-φ19 5.0 70 397 22 349 360 270 450 770
318 305 133 55 110 16 49.0 200 19 350 300 400 0 4-φ19 5.0 70 369 26 388 400 305 505 780
358 286 149 60 140 18 53.0 225 19 400 350 450 0 8-φ19 5.0 75 368 28 431 450 330 555 820
356 311 149 55 110 16 49.0 225 19 400 350 450 0 8-φ19 5.0 75 393 28 431 450 330 555 815
356 311 149 60 140 18 53.0 225 19 400 350 450 0 8-φ19 5.0 75 393 28 431 450 330 555 845
406 349 168 80 140 18 53.0 250 24 500 450 560 0 8-φ19 5.0 80 445 30 484 510 361 611 915
406 349 168 65 140 18 58.0 250 24 500 450 550 0 8-φ19 5.0 80 445 30 484 510 361 811 915
457 368 190 65 140 18 58.0 280 24 500 450 550 0 8-φ19 5.0 85 485 35 542 550 520 670 985
457 368 190 75 140 20 67.5 280 24 500 450 550 0 8-φ19 5.0 85 485 35 542 550 390 670 985
457 419 190 65 140 18 58.0 280 24 500 450 530 0 8-φ19 5.0 85 536 35 542 550 390 670 1035
457 419 190 75 140 20 67.5 280 24 500 450 560 0 8-φ19 5.0 85 536 35 542 550 390 670 1035
508 406 216 65 140 18 58.0 315 28 600 550 660 0 8-φ24 6.0 120 570 45 628 630 520 835 1235
500 406 216 80 170 22 71.0 315 20 600 550 660 0 8-φ24 6.0 120 570 45 628 630 520 835 1345
508 457 216 85 140 18 58.0 315 28 600 550 660 0 8-φ24 6.0 120 680 45 628 630 520 835 1315
508 457 216 80 170 22 71.0 315 28 600 550 660 0 8-φ24 6.0 120 680 45 628 630 520 835 1345
508 508 216 65 140 18 58.0 315 28 600 550 660 0 8-φ24 6.0 120 680 45 628 630 520 835 1315
508 508 216 80 170 22 71.0 315 28 600 550 660 0 8-φ24 6.0 120 680 45 628 630 520 835 1345
610 560 254 75 140 20 67.5 355 28 740 680 800 0 8-φ24 6.0 130 780 52 728 715 625 900 1515
610 860 254 96 170 25 86.0 355 20 740 600 800 0 8-φ24 6.0 130 750 52 726 715 625 900 1550
610 630 254 75 140 20 67.5 355 28 740 680 800 0 8-φ24 6.0 130 750 52 728 715 625 900 1515
610 630 254 75 140 20 67.5 355 28 740 680 800 0 8-φ24 6.0 130 750 52 726 715 625 900 1615
610 630 264 95 170 25 86.0 355 28 740 620 800 0 8-φ24 6.0 130 750 52 726 715 625 980 1550
610 630 254 95 170 25 86.0 355 28 740 680 800 0 8-φ24 6.0 130 750 52 726 715 625 960 1650



Installation qhov ntev Tag nrho qhov ntev
  E F   M N P R 5   AC AD F L
48 110 14 42.5 300 250 350 0 4-φ19 5 360 270 600 800
48 110 14 42.5 300 250 350 0 4-φ19 5 350 270 500 050
55 110 16 49 350 300 400 0 4-φ19 5 400 308 570 870
60 140 18 53 400 350 450 0 8-φ19 5 450 330 615 910
55 110 16 49 400 350 450 0 8-φ19 5 450 330 615 900
0 140 18 82 400 350 450 0 8-φ19 5 450 330 615 930
60 140 18 53 500 450 550 0 8-φ19 5 510 381 715 1010
65 140 18 58 500 450 550 0 8-φ19 5 510 361 715 1010
65 140 18 58 500 450 550 0 8-φ19 5 550 390 760 1000
75 140 20 67.5 500 450 550 0 8-φ19 5 550 390 760 1080
65 140 18 58 500 450 550 0 8-φ19 S 550 390 760 1130
75 140 20 67.5 500 450 550 0 8-φ19 5 550 390 760 1130
65 140 18 58 600 550 660 0 8-φ24 6 630 520 970 1320
80 170 22 71 600 550 660 0 8-φ24 8 630 520 970 1350
65 140 18 58 600 550 660 0 8-φ24 6 630 520 970 1440
80 170 22 71 600 550 660 0 8-φ24 6 630 520 970 1470
65 140 18 58 600 550 660 0 8-φ24 6 630 520 970 1440
80 170 22 71 600 550 000 0 8-φ24 6 630 520 970 1470
75 140 20 87.5 740 680 800 0 8-φ24 6 715 825 1135 1840
95 170 25 86 740 680 800 0 8-φ24 6 715 625 1135 1670
75 140 20 68 740 680 800 0 8-φ24 6 715 625 1135 1640
95 170 140 68 740 680 800 0 8-φ24 6 715 625 1135 1740
630 254 170 86 740 680 800 0 8-φ24 6 750 520 715 1670
630 254 170 86 740 600 800 0 8-φ24 6 780 520 715 1770



Ncej Installation qhov ntev Tag nrho qhov ntev
A B1 B2 C D E F G K L AB AC HD
2 630 710 800 254 75 140 20 67.5 35 1875 762 820 1180
4-12 630 710 800 254 95 170 25 86 35 1900 762 820 1180
2 686 630 710 280 95 170 25 86 35 1920 810 850 1090
4-12 686 630 710 280 110 210 28 100 35 1935 810 880 1250
2 800 900 1000 280 95 170 25 86 35 2320 960 990 1400
4 800 900 1000 280 120 210 32 109 35 2350 960 990 1400
6-12 800 900 1000 280 130 250 32 119 35 2390 960 990 1400




YE4 Parameters




Cov ntaub ntawv qhia 380V 50Hz
Hom Hwj chim
(KW)		 Ceev
(r/min)		 Qhov hluav taws xob
（V）		 Tam sim no
(A)		 Kev ua tau zoo
%		 zog faclor ntsuas torque
N.m		 Xauv torque / ntsuas torque Maximum torque / ntsuas torque Xauv tam sim no / ntsuas tam sim no Txoj kev sib txuas
YOG4-8OM1-2 0.75 2895 380 1.6 83.5 0.83 2.5 2.2 2.3 8.5 Y
YOG4-80M2-2 1.10 2900 380 2.4 85.2 0.83 3.6 2.2 2.3 8.5 Y
YOG4-BOM1-4 0.55 1435 380 1.3 83.9 0.74 3.7 2.2 2.3 8.5 Y
YOG4-8OM2-4 0.75 1435 380 1.8 85.7 0.74 5.0 2.3 2.3 8.5 Y
YOG4-90S-2 1.50 2905 380 3.1 86.5 0.85 4.9 2.2 2.3 9.0 Y
YOG4-80L-2 2.20 2905 380 4.4 88.0 0.86 7.2 2.2 2.3 9.0 Y
YOG4-908-4 1.10 1450 380 2.6 87.2 0.75 7.2 2.3 2.3 8.5 Y
YOG4-90L-4 1.50 1450 380 3.4 88.2 0.76 9.9 2.3 2.3 9.0 Y
YOG4-90S-6 0.75 945 380 2.0 82.7 0.70 7.6 2.1 2.1 7.5 Y
YOG4-90L-6 1.10 950 380 2.8 84.5 0.70 11.1 2.1 2.1 7.5 Y
YOG4-100L-2 3.00 2915 380 5.9 89.1 0.87 9.8 2.2 2.3 9.5 Y
YOG4-100L1-4 2.20 1460 380 4.7 89.5 0.79 14.4 2.3 2.3 9.0 Y
YOG4-100L2-4 3.00 1480 380 6.3 90.4 0.80 19.8 2.3 2.3 9.5 Y
YOG4-100L-6 1.50 950 380 3.7 85.9 0.71 15.1 2.1 2.1 7.5 Y
YOG4-112M-2 4.00 2925 380 7.7 90.0 0.88 13.1 2.2 2.3 9.5 △
YOG4-112M-4 4.00 1480 380 8.3 91.1 0.80 26.2 2.3 2.3 9.5 △
YOG4-112M-6 2.20 965 380 5.4 87.4 0.71 21.8 2.1 2.1 7.5 Y
YOG4-132S1-2 5.50 2935 380 10.4 90.9 0.88 17.9 2.0 2.3 9.5 △
YOG4-13282-2 7.50 2935 380 14.0 91.7 0.89 24.4 2.0 2.3 9.5 △
YOG4-13284 5.50 1470 380 11.4 91.9 0.80 35.7 2.0 2.3 9.5 △
YOG4-132M-4 7.50 1470 380 15.2 92.6 0.81 48.7 2.0 2.3 9.5 △
YOG4-1328-8 3.00 975 380 7.2 88.6 0.71 29.4 2.0 2.1 7.5 Y
YOG4-132M1-6 4.00 975 380 9.4 89.5 0.72 39.2 2.0 2.1 8.0 △
YOG4-182M2-6 5.50 975 380 12.8 90.5 0.72 53.9 2.0 2.1 8.0 △
YOG4-1328-8 2.20 730 380 5.7 84.5 0.70 28.8 1.8 2.0 7.5 Y
YOG4-132M-8 3.00 730 380 7.6 85.9 0.70 39.2 1.8 2.0 7.8 Y
YOG4-160M1-2 11.00 2945 380 20.3 92.6 0.89 35.7 20.0 2.3 9.5 △
YOG4-160M2-2 15.00 2955 380 27.4 93.3 0.89 48.5 20.0 2.3 9.5 △
YOG4-160L-2 18.50 2950 380 33.7 93.7 0.89 59.9 2.0 2.3 9.5 △
YOG4-160M-4 11.00 1470 380 21.6 93.3 0.83 71.5 2.0 2.3 9.5 △
YOG4-160L-4 15.00 1475 380 28.9 93.9 0.84 97.1 2.0 2.3 9.5 △
YOG4-160M-6 7.50 990 380 16.4 91.3 0.76 73.1 2.0 2.1 8.0 △
YOG4-160L-6 11.00 980 380 23.5 92.3 0.77 107.2 2.0 2.1 8.5 △
VFA-1FOM1-8 4.00 730 380 9.8 87.1 0.71 52.3 1.8 2.0 7.9 △
YOG4-160M2-8 5.50 730 380 13.1 88.3 0.72 72.0 1.8 2.0 8.1 △
YOG4-160L-8 7.50 730 380 17.2 89.3 0.74 98.1 1.8 2.0 7.8 △
VFA-180M-2 22.00 2960 380 40.0 94.0 0.89 71.0 2.0 2.3 9.5 △
YOG4-180M-4 18.50 1490 380 35.1 94.2 0.85 119.4 2.0 2.3 9.5 △
YOG4-180L-4 22.00 1480 380 41.6 94.5 0.85 142.0 2.0 2.3 9.5 △
YOG4-180L-6 15.00 980 380 30.7 92.9 0.80 146.2 2.0 2.1 8.5 △
YOG4-180L-8 11.00 730 380 25.0 90.4 0.74 143.9 1.8 2.0 7.9 △
YOG4-200L1-2 30.00 2965 380 54.2 94.5 0.89 966.0 2.0 2.3 9.0 △
YOG4-200L2-2 37.00 2965 380 68.6 94.8 0.89 119.2 2.0 2.3 9.0 △
YOG4-200L-4 30.00 1490 380 56.5 94.9 0.85 193.8 2.0 2.3 9.0 △
YOG4-200L1-6 18.50 985 380 37.6 93.4 0.80 1794.0 2.0 2.1 8.5 △
YOG4-200L2-6 22.00 985 380 44.0 93.7 0.81 213.3 2.0 2.1 8.5 △
YOG4-200L-8 15.00 735 380 33.3 91.2 0.75 194.9 1.8 2.0 8.0 △
YOG4-225M-2 45.00 2975 380 80.9 95.0 0.89 144.5 2.0 2.3 9.0 △
YOG4-2258-4 37.00 1485 380 69.5 95.2 0.85 237.9 2.0 2.3 9.0 △
YOG4-225M-4 45.00 1485 380 84.3 95.4 0.85 289.4 2.0 2.3 9.0 △
YOG4-225M-6 30.00 995 380 59.0 94.2 0.82 290.9 2.0 2.1 8.3 △



Technical data table
  38 DV 50 Hz
Hom Hwj chim
(KW)		 Ceev
(r/min)		 Qhov hluav taws xob
(V)		 Tam sim no
(A)		 Kev ua tau zoo
%		 fais fab xwm txheej ntsuas torque
N.m		 Xauv torque / ntsuas torque Maximum torque / ntsuas torque Xauv tam sim no / ntsuas tam sim no Txoj kev sib txuas
YOG4-2258-8 18.5 735 380 40.9 91.7 0.75 240.4 1.8 2.0 8.1 △
YOG4-225M-8 22.0 735 380 47.8 92.1 0.76 285.9 1.8 2.0 9.3 △
YOG4-250M-2 55.0 2970 380 98.5 95.3 0.89 176.9 2.0 2.3 9.0 △
YOG4-250M-4 55.0 1485 380 102.0 95.7 0.86 353.7 2.0 2.3 9.0 △
YOG4-250M-6 37.0 985 380 71.7 94.5 0.83 358.7 2.0 2.1 8.3 △
YOG4-250M-8 30.0 735 380 63.9 92.7 0.77 389.8 1.8 2.0 7.9 △
YOG4-280S-2 75.0 2975 380 134.0 95.6 0.80 240.8 1.8 2.3 8.5 △
YOG4-280M-2 90.0 2975 380 160.0 95.8 0.89 288.9 1.8 2.3 8.5 △
YOG4-280S-4 75.0 1490 380 36.0 96.0 0.87 480.7 2.0 2.3 8.5 △
YOG4-280M-4 90.0 1490 380 162.0 98.1 0.89 576.8 2.0 2.3 8.5 △
YOG4-280S-6 45.0 990 380 86.9 94.8 0.83 434,1 2.0 2.0 9.5 △
YOG4-280M-6 55.0 990 380 105.0 95.1 0.84 430.6 2.0 2.0 8.5 △
YE4-280SB 37.0 740 380 77.4 93.1 0.78 477.5 1.8 2.0 7.9 △
YOG4-280M-8 45.0 740 380 93.8 93.4 0.78 580.7 1.8 2.0 7.9 △
YOG4-315S-2 110.0 2985 380 196.0 96.0 0.89 351.9 1.8 2.3 8.5 △
YOG4-315M-2 132.0 2985 380 234.0 96.2 0.89 422.3 1.8 2.3 8.5 △
YOG4-315L1-2 160.0 2985 380 284.0 96.3 0.89 511.9 1.8 2.2 8.5 △
YOG4-315L2-2 185.0 2985 380 328.0 96.4 0.89 591.9 1.8 2.2 8.5 △
YOG4-315L3-2 200.0 2985 380 354.0 96.5 0.89 639.9 1.8 2.2 8.5 △
YOG4-315S-4 110.0 1490 380 195.0 96.3 0.89 705.0 1.8 2.2 9.5 △
YOG4-315M-4 132.0 1490 380 234.0 96.4 0.89 846.0 1.8 2.2 8.5 △
YOG4-315L1-4 160.0 1490 380 280.0 96.6 0.90 1025.5 1.8 2.2 8.5 △
YOG4-315L2-4 185.0 1490 380 323.0 98.7 0.90 1185.7 1.8 2.2 8.5 △
YOG4-315L3-4 200.0 1490 380 349.0 96.7 0.90 1291.9 1.8 2.2 8.5 △
YOG4-315S-6 75.0 990 380 142.0 95.4 0.84 723.5 1.6 2.0 8.0 △
YOG4-315M-6 90.0 990 380 168.0 95.6 0.85 868.2 1.6 2.0 8.0 △
YOG4-315L1-6 110.0 990 380 205.0 95.8 0.85 1081. 1.8 2.0 8.0 △
YOG4-315L2-6 132.0 990 380 243.0 96.0 0.88 1273.3 1.8 2.0 8.0 △
YOG4-315S-8 55.0 740 380 111.0 93.7 0.80 708.8 1.6 2.0 9.2 △
YOG4-315M-8 75.0 740 380 151.0 94.2 0.80 967.9 1.6 2.0 7.6 △
YOG4-315L1-8 90.0 740 380 179.0 94.4 0.81 1161.5 1.8 2.0 7.7 △
YOG4-315L2-8 110.0 740 380 218.0 94.7 0.81 1419.6 1.8 2.0 7.7 △
YOG4-355M-2 250.0 2985 380 433.0 96.5 0.91 799,8 1.6 2.2 9.5 △
YOG4-355L1-2 315.0 2985 380 545.0 96.5 0.91 1007.8 1.6 2.2 8.5 △
YOG4-355L2-2 355.0 2985 380 821.0 96.5 0.90 1135.8 0.9 1.8 8.6 △
YOG4-355M1-4 220.0 1495 380 384.0 96.7 0.90 1405.4 1.8 2.2 8.5 △
YOG4-365M2-4 250.0 1490 380 436.0 96.7 0.90 1602.3 1.8 2.2 8.5 △
YOG4-355L1-4 200.0 1490 380 489.0 96.7 0.90 1794.6 1.8 2.2 8.5 △
YOG4-355L2-4 315.0 1490 380 550.0 96.7 0.90 2019.0 1.8 2.2 8.5 △
YOG4-365L3-4 355.0 1490 380 834.0 96.7 0.88 2275.3 0.9 1.8 8.5 △
YOG4-355M1-6 160.0 995 380 294.0 98.2 0.88 1535.7 1.6 2.0 8.0 △
YOG4-355M2-6 185.0 995 380 339.0 96.3 0.86 1775.6 1.6 2.0 9.0 △
YOG4-355M3-6 200.0 905 380 367.0 96.3 0.86 1919.6 1.6 2.0 8.0 △
YOG4-355L1-6 220.0 995 380 403.0 96.4 0.86 2111.6 1.6 2.0 8.0 △
YOG4-355L2-6 250.0 995 380 458.0 96.5 0.88 2399.5 1.6 2.0 8.0 △
YOG4-355M1-8 132.0 745 380 261.0 94.9 0.81 1692.1 1.6 2.0 7.7 △
YOG4-855M2-8 160.0 745 380 312.0 95.1 0.82 2051.0 1.6 2.0 7.7 △
YOG4-355L-8 200.0 745 380 388.0 95.4 0.82 2563.8 1.6 2.0 7.8 △



Mounting Dimension 380V 50Hz
Ncej loj Foles Mounting Dimension Zuag qhia tag nrho Dimension
A B C D E F G H K AA BB HA AB AC AD HD L
80M 2,4,6,8 125 100 50 19 40 6 15.5 80 10 34 142 10 160 170 142 222 300
90S 2,4,6,8 140 100 56 24 50   20 90 10 36 165 12 176 180 152 242 345
90L 125 180 380
100L 2,4,6,8 160 140 63 28 60 8 24 100 12 40 208 14 200 205 168 268 415
112M 2,4,6,8 190 140 70 28 60 8 24 112 12 45 214 15 230 225 181 293 440
225S 2,4,6,8 216 140 89 38 80 10 33 132 12 55 224 18 262 270 201 333 505
132M 178 262 545
160M 2,4,6,8 254 210 108 42 110 12 37 160 15 65 304 20 314 320 280 420 655
160L 254 334 685
180M 2,4,6,8 279 241 121 48 110 14 42.5 180 15 70 349 22 349 360 270 450 720
180L 279 397 770
200L 2,4,6,8 318 305 133 55 110 16 49 200 19 70 369 25 388 400 306 506 780
225S 4,8 358 288 149 60 140 18 53 225 19 75 388 28 431 450 330 555 820
225M 2 311 55 110 16 49 393 815
4,6,8 60 140 18 53 845
250M 2 406 349 168 60 140 18 53 250 24 80 445 30 404 485 381 611 915
4,6,8 65 58
280S 2 457 388 190 65 140 18 58 280 24 85 485 35 542 550 390 670 985
4,6,8 75 20 67.5
280M 2 419 65 18 58 536 1035
4,6,8 75 20 67.5
315S 2 508 406 218 65 140 18 58 315 28 120 570 45 628 630 520 835 1205
4,6,8 80 170 22 71 1235
315M 2 457 65 140 18 58 680 1315
4,6,8 80 170 22 71 1345
315L 2 508 65 140 18 58 680 1315
4,6,8 80 170 22 71 1345
355M 2 610 560 254 75 140 20 67.5 355 28 130 750 52 726 715 625 880 1515
4,6,8 95 170 25 86 1550
355L 2 630 75 140 20 67.5 750 1515
4,6,8 95 170 25 86 1550
355L ntev 2 610 630 254 75 140 20 67.5 355 28 130 750 52 726 715 625 880 1615
4,6,8 95 170 25 86 1650



Kev cog lus los muab cov neeg siv khoom nrog cov kev pabcuam zoo tshaj plaws thiab muaj txiaj ntsig zoo thiab cov kev daws teeb meem zoo tshaj plaws tsav tsheb
Mounting Dimension 380V 50Hz
B5 (pem tsis muaj ko taw, kawg npog nrog flange)
H80-200 hli   H225-355 hli
Tshuab No. Foles Mounting Dimensian Owerall Dimensian
D E F G M N P R S T AC AD HF L
80M 2,468 19 40 6 15.5 165 130 200   4-φ12 3.5 165 142 242 300
908 2,468 24 50 8 20 165 130 200   4-φ12 3.5 180 152 252 345
90L 360
100L 2,468 28   8 24 215 180 250   4-φ15 4 205 168 293 415
112 2,468 28 60 8 24 215 180 250   4-φ15 4 225 181 306 440
1328 2,468 38 B0 10 33 265 230 300   4-415 4 270 201 351 505
132M 545
160M 2.4,6,8 42 110 12 37 300 250 350   4-φ19 5 320 260 435 655
160L 885
180M 2,468 48 110 14 42.5 300 250 350   4-φ19 5 360 270 445 720
180L 770
200L 2,468 55 110 16 49 350 300 400   4-φ19 5 400 306 506 780
2258 48 60 140 18 53 400 350 450   8-419 5 450 330 555 820
225M 2 55 10 16 49 815
46.8 60 140 18 53 845
250M 2 60 140 18 53 500 450 550   8-φ19 5 510 361 636 915
46.8 65 58
2808 2 65 140 18 58 500 450 550   8-φ19 5 550 390 665 985
46.8 75 20 67.5
280M 2 65 18 58 1035
46.8 75 20 67.5
315S 2 508 406 216 65 600 550 660   8-φ24 6 630 520 855 1205
46.8 BO 170 22 71 1235
315M 2 457 65 140 18 58 1315
46.8 80 170 22 71 1345
315L 2 508 65 140 18 58 1315
46.8 80 170 22 71 1345
355M 2 610 560 254 75 740 680 800   8-φ24 6 715 625 100 1515
46.8 95 170 25 B8 1550
355L 2 630 75 140 20 67.5 1515
46 95 170 25 86 1550
355L 2 610 630 254 75 140 20 67.5   8-φ24 6 715 625 100 1615
46.8 95 170 25 BB 1650




YE5 Parameters




Technical data table
  380V 50Hz
Hom Hwj chim
(KW)		 Ceev
(r/min)		 Qhov hluav taws xob
(V)		 Tam sim no
(A)		 Kev ua tau zoo
%		 zog faclor ntsuas torque
N.m		 Xauv torque / ntsuas torque Maximum torque / ntsuas torque Xauv tam sim no / ntsuas tam sim no Txoj kev sib txuas Qhov hnyav
(kg)
YOG5-80M1-2 0.75 2925 380 1.6 86.3 0.83 2.4 2.3 2.3 8.5 Y 20
YOG5-80M2-2 1.10 2925 380 2.3 87.8 0.83 3.6 2.3 2.3 8.5 Y 25
YOG5-80M1-4 0.55 1470 380 1.3 98.7 0.75 3.6 2.3 2.3 8.0 Y 21
YOG5-80M2-4 0.75 1470 380 1.7 88.2 0.75 4.9 2.3 2.3 8.0 Y 25
YOG5-90S-2 1.50 2950 380 3.0 88.9 0.85 4.9 2.3 2.3 9.0 Y 27
YOG5-90L-2 2.20 2950 380 4.3 90.2 0.86 7.1 2.3 2.3 9.0 Y 32
YOG5-90S-4 1.10 1470 380 2.5 99.5 0.75 7.1 2.3 2.3 8.5 Y 29
YOG5-90L-4 1.50 1470 380 3.3 90.4 0.76 9.7 2.3 2.3 8.5 Y 34
YOG5-90S-8 0.75 945 380 1.8 85.7 0.72 7.6 2.1 2.1 7.5 Y 29
YOG5-90L-6 1.10 945 380 2.6 87.2 0.73 11.1 2.1 2.1 7.5 Y 31
YOG5-100L-2 3.00 2950 380 5.8 91.1 0.87 9.7 2.3 2.3 9.5 Y 41
YOG5-100L1-4 2.20 1470 380 4.6 91.4 0.80 14.3 2.3 2.3 9.0 Y 40
YOG5-100L2-4 3.00 1470 380 6.1 92.1 0.81 19.5 2.3 2.3 9.0 Y 44
YOG5-100L-6 1.50 950 380 3.5 88.4 0.74 15.1 2.1 2.1 7.5 Y 45
YOG5-112M-2 4.00 2960 380 7.5 91.8 0.80 12.9 2.3 2.3 9.5 △ 61
YOG5-112M-4 4.00 1475 380 8.1 92.8 0.81 25.9 2.3 2.3 9.0 △ 67
YOG5-112M-6 2.20 965 380 5.0 89.7 0.74 21.8 2.1 2.1 7.5 Y 63
YOG5-132S1-2 5.50 2970 380 10.3 92.6 0.88 17.7 2.2 2.3 9.5 △ 80
YOG5-132S2-2 7.50 2970 380 13.7 93.3 0.89 24.1 2.2 2.3 9.5 △ 90
YOG5-1325-4 5.50 1485 380 11.0 93.4 0.81 35.4 2.0 2.3 9.5 Y 100
YOG5-132M-4 7.50 1485 380 14.6 94.0 0.83 48.2 2.0 2.3 9.5 △ 116
YOG5-132S-6 3.00 980 380 6.8 90.6 0.74 29.2 2.0 2.1 7.5 Y 90
YOG5-132M1-6 4.00 980 380 9.0 914.0 0.74 39.0 2.0 2.1 8.0 △ 93
YOG5-132M2-6 5.50 980 380 12.1 92.2 0.75 53.8 2.0 2.1 8.0 △ 96
YOG5-132S-8 2.20 730 380 5.5 87.2 0.70 28.8 1.8 2.0 7.4 Y 95
YOG5-132M-8 3.00 730 380 7.1 98.4 0.73 39.2 1.8 2.0 7.8 Y 97
YOG5-160M1-2 11.00 2975 380 20.0 94.0 0.89 35.3 2.2 2.3 9.5 △ 175
YOG5-160M2-2 15.00 2975 380 27.1 94.5 0.89 48.2 2.2 2.3 9.5 △ 183
YOG5-160L-2 18.50 2975 380 33.3 94.9 0.89 59.4 2.2 2.3 9.5 △ 213
YOG5-160M-4 11.00 1485 380 20.8 94.6 0.85 70.7 2.0 2.3 9.5 △ 191
YOG5-160L-4 15.00 1485 380 28.2 95.1 0.85 96.5 2.0 2.3 9.5 △ 215
YOG5-160M-6 7.50 987 380 15.7 92.9 0.78 72.6 2.1 2.1 8.0 △ 197
YOG5-160L-6 11.00 987 380 22.9 93.7 0.78 106.4 2.1 2.1 8.5 △ 205
YOG5-160M1-8 4.00 735 380 9.3 994.0 0.73 52.0 1.9 2.0 7.9 △ 195
YOG5-160M2-8 5.50 735 380 12.5 90.4 0.74 71.5 1.9 2.0 8.1 △ 200
YOG5-160L-8 7.50 735 380 16.9 91.3 0.74 97.4 1.9 2.0 7.8 △ 205
YOG5-180M-2 22.00 2980 380 39.5 95.1 0.89 70.5 2.2 2.3 9.5 △ 233
YOG5-180M-4 18.50 1485 380 34.3 95.3 0.86 119.0 2.0 2.3 9.5 △ 245



Technical data table
  380V 50Hz
Hom Hwj chim
(kw)		 Ceev
(r/min)		 Qhov hluav taws xob
(V)		 Tam sim no
(A)		 Kev ua tau zoo
%		 fais fab xwm txheej ntsuas torque
N.m		 Xauv torque / ntsuas torque Maximum torque / ntsuas torque Xauv tam sim no / ntsuas tam sim no Txoj kev sib txuas Qhov hnyav
kg
VE 5-180L-4 22 1485 380 40.7 95.5 0.86 141 2.0 2.3 9.5 △ 280
YOG5-180L-6 15 985 380 29.8 94.3 0.81 145 2.0 2.1 8.5 △ 272
YOG5-180L-8 11 730 380 24.5 92.2 0.74 144 2.0 2.0 7.9 △ 233
YOG5-200L1-2 30 2985 390 53.6 95.5 0.89 96 2.2 2.3 9.0 △ 340
YOG5-200L2-2 37 2985 380 65.9 95.8 0.89 118 2.2 2.3 9.0 △ 344
YOG5-200L-4 30 1490 380 54.6 95.9 0.87 192 2.0 2.3 9.0 △ 367
YOG5-200L1-6 19 990 380 36.7 94.6 0.81 178 2.1 2.1 8.5 △ 340
YOG5-200L2-6 22 990 390 43.0 94.9 0.82 212 2.1 2.1 8.5 △ 345
YOG5-200L-8 15 730 380 32.7 92.9 0.75 196 2.0 2.0 8.0 △ 335
YOG5-225M-2 45 2965 380 80.0 96.0 0.89 145 2.2 2.3 9.0 △ 390
YOG5-225S-4 37 1490 390 67.2 96.1 0.87 237 2.0 2.3 9.0 △ 429
YOG5-225M-4 45 1490 390 81.6 96.3 0.87 288 2.0 2.3 9.0 △ 446
YOG-225M-8 30 985 380 58.3 95.3 0.82 291 2.0 2.1 8.3 △ 436
YOG5-225S-8 19 735 380 40.2 93.3 0.75 240 1.9 2.0 8.0 △ 430
YOG5-225M-8 22 735 380 47.0 93.8 0.76 286 1.9 2.0 8.3 △ 438
YOG5-250M-2 55 2975 390 97.6 96.2 0.89 177 2.2 2.3 9.0 △ 505
YOG5-250M-4 55 1490 380 98.4 96.5 0.88 353 2.0 2.3 9.0 △ 510
VEE-250M-6 37 985 380 70.0 95.6 0.84 359 2.1 2.1 8.3 △ 470
YOG5-250M-8 30 740 390 62.9 94.1 0.77 387 1.9 2.0 7.8 △ 480
YOG5-280S-2 75 2990 390 133.0 96.5 0.89 240 2.0 2.3 8.5 △ 675
YOG5-280M-2 90 2990 380 159.0 96.6 0.89 287 2.0 2.3 8.5 △ 865
YOG5-280M-4 75 1495 380 134.0 96.7 0.88 479 2.0 2.3 8.5 △ 730
YOG5-280M-4 90 1495 390 159.0 96.9 0.89 575 2.0 2.3 8.5 △ 885
YOG5-280S-6 45 990 390 83.0 95.8 0.86 434 2.1 2.0 8.5 △ 720
YOG5-280S-6 55 990 380 101.0 96.0 0.86 581 2.0 2.0 8.5 △ 730
YOG5-280S-8 37 740 380 76.3 94.4 0.78 478 1.9 2.0 7.9 △ 720
YOG5-280M-8 45 740 390 92.6 94.7 0.78 581 1.9 2.0 7.9 △ 730
YOG5-315S-2 110 2985 390 194.0 96.8 0.89 352 1.9 2.3 8.5 △ 1130
YOG5-315M-2 132 2985 380 233.0 96.9 0.89 422 1.9 2.3 8.5 △ 1150
YOG5-315L1-2 160 2985 380 278.0 97.0 0.90 512 1.9 2.2 8.5 △ 1180
YOG5-315L2-2 185 2985 390 322.0 97.1 0.90 592 1.9 2.2 8.5 △ 1210
YOG5-315L2
(实际按YE5-315L2-2生产)		 200 2985 390 347.0 97.2 0.90 640 1.9 2.2 8.5 △ 1260
YOG5-315S-4 110 1495 380 194.0 97.0 0.89 708 2.0 2.2 8.5 △ 1260
YOG5-315M-4 132 1495 380 232.0 97.1 0.89 843 2.0 2.2 8.5 △ 1324
YOG5-315L1-4 160 1495 390 278.0 97.2 0.90 1022 2.0 2.2 8.5 △ 1488
YE⁵-315L2-4 185 1495 380 321.0 97.3 0.90 1182 2.0 2.2 8.5 △ 1505
YOG5-315L2-4 200 1495 380 347.0 97.4 0.90 1278 2.0 2.2 8.5 △ 1606



Technical data table
Hom Hwj chim
(KW)		 Ceev
(r/min)		 Qhov hluav taws xob
V		 Tam sim no
(A)		 Kev ua tau zoo
%		 fais fab xwm txheej ntsuas torque
N.m		 Xauv torque / ntsuas torque Maximum torque / ntsuas torque Xauv tam sim no / ntsuas tam sim no Txoj kev sib txuas Qhov hnyav
(kg)
YOG5-315S-6 75 995 380 139 96.3 0.85 720 2.0 2.0 8.0 △ 1125
YOG5-315M-6 90 995 380 169 96.5 0.84 884 2.0 2.0 8.0 △ 1260
YOG5-315L1-6 110 995 380 204 96.6 0.85 1056 2.0 2.0 8.0 △ 1324
YOG5-315L2-6 132 995 380 241 96.8 0.86 1267 2.0 2.0 8.0 △ 1488
YOG5-315S-8 55 740 380 110 94.9 0.80 710 1.8 2.0 8.1 △ 1125
YOG5-315M-8 75 740 380 149 95.3 0.80 968 1.8 2.0 7.6 △ 1208
YOG5-315L1-8 90 740 380 177 95.5 0.B1 1161 1.8 2.0 7.7 △ 1230
YOG5-315L2-B 110 740 380 216 95.7 0.81 1420 1.8 2.0 7.7 △ 1346
YOG5-3158-10 45 595 380 99 92.0 0.75 722 1.3 2.0 6.2 △
YOG5-315M-10 55 595 380 120 92.6 0.75 883 1.3 2.0 6.2 △
YOG5-315L1-10 75 595 380 161 93.0 0.76 1204 1.3 2.0 6.2 △
YOG5-315L2-10 90 595 380 190 93.6 0.77 1445 1.3 2.0 6.2 △
YOG5-355M1-2 220 2985 380 382 97.2 0.9 704 1.8 2.2 8.5 △ 2090
YOG5-355M2-2 250 2985 380 429 97.2 0.91 800 1.8 2.2 8.5 △ 2120
YOG5-355L1-2 280 2985 380 481 97.2 0.91 896 1.8 2.2 8.5 △ 2160
YOG5-355L2-2 315 2985 380 541 97.2 0.91 1008 1.8 2.2 8.5 △ 2210
YOG5-355L3-2 355 2985 380 610 97.2 0.91 1136 1.8 2.2 8.5 △ 2260
YOG5-355M1-4 220 1495 380 381 97.4 0.90 1405 2.0 2.2 8.5 △ 2010
YOG5-355M2-4 250 1495 380 433 97.4 0.90 1597 2.0 2.2 8.5 △ 2068
YOG5-355L1-4 280 1495 380 485 97.4 0.90 1789 2.0 2.2 8.5 △ 2105
YOG5-355L2-4 315 1495 380 546 97.4 0.90 2012 2.0 2.2 8.5 △ 2160
YOG5-355L3-4 355 1495 380 615 97.4 0.90 2268 2.0 2.2 8.5 △ 2205
YOG5-355M1-6 185 995 380 337 96.9 0.86 1776 1.9 2.0 8.0 △ 2010
YOG5-355M2-6 200 995 380 364 97.0 0.86 1920 1.9 2.0 8.0 △ 2068
YOG5-355L1-6 220 995 380 401 97.0 0.86 2112 1.9 2.0 8.0 △ 2150
YOG5-355L2-6 250 995 380 455 97.0 0.86 2399 1.9 2.0 8.0 △ 2258
YOG5-355L3-6 280 995 380 510 97.0 0.86 2687 1.9 2.0 8.0 △
YOG5-355L4-6 315 995 380 574 97.0 0.86 3023 1.9 2.0 8.0 △
YOG5-355L2-8 200 745 380 385 96.3 0.82 2564 1.8 2.0 7.8 △ 2190
VFS-355M1-10 110 595 380 229 93.7 0.78 1766 1.3 2.0 6.0 △
YOG5-355M2-10 132 595 380 273 94.1 0.78 2119 1.3 2.0 6.0 △
YOG5-355L1-10 160 595 380 331 94.1 0.78 2568 1.3 2.0 6.0 △
YOG5-355L2-10 185 595 380 383 94.1 0.78 2969 1.3 2.0 6.0 △



Installation txoj kev:




Qauv thiab installation hom
(IM code))		 IM B3 IM B8 IM B5 IM B6 IM V5 IM V1 IM B7 IM V6 IM V3
Daim duab installation productcate-400-400 productcate-400-400 productcate-400-400 productcate-400-400 productcate-400-400 productcate-400-400 productcate-400-400 productcate-400-400 productcate-400-400
Ncej loj 63-450 63-160 63-280 63-160 63-160 63-450 63-160 63-160 63-160
Qauv thiab installation hom
(IM code))		 IM V37 IM V17 IB 34 IM V19 IM V18 IB B14 IM V35 IM V15 IB 35
Daim duab installation productcate-400-400 productcate-400-400 productcate-400-400 productcate-400-400 productcate-400-400 productcate-400-400 productcate-400-400 productcate-400-400 productcate-400-400
Ncej loj 63-132 63-13 63-132 63-132 63-132 63-132 63-160 63-160 63-450



Ordering cov lus qhia





Thaum muas YE3 lub cev muaj zog, thov nco ntsoov muab cov ntsiab lus hauv qab no: lub zog, qhov hluav taws xob, zaus, kev taw qhia ntawm kev sib hloov, qib kev tiv thaiv, txoj kev ua kom txias, txoj kev teeb tsa, txoj kev xaim, xim xim sab nrauv, thiab txhua qhov tshwj xeeb siv ib puag ncig thiab kev xav tau rau kev sib koom tes nrog lwm cov cuab yeej siv tshuab. Cov ntaub ntawv no yog qhov tseem ceeb rau customizing thiab configuring txoj cai lub cev muaj zog los xyuas kom meej nws pom kev ua tau zoo thiab kev ntseeg tau nyob rau hauv ib tug tshwj xeeb daim ntawv thov scenario.

Tsis tas li ntawd, ua ntej koj tso ib qho kev txiav txim, thov nco ntsoov tiv tauj peb lub tuam txhab kev lag luam kom tau txais qhov tseeb ntawm lub cev muaj zog daim duab kos duab thiab lwm yam tsis muaj. Sab hauv qhov ntev thiab kev tsis sib xws ntawm cov khoom no tuaj yeem hloov pauv vim kev txhim kho txuas ntxiv ntawm thev naus laus zis thiab kev hloov tshiab ntawm cov qauv hauv tsev thiab txawv teb chaws. Qhov no ua kom paub tseeb tias cov ntaub ntawv koj tau txais yog qhov tseeb tshaj plaws thiab hloov tshiab. Ua tsaug rau koj txoj kev nkag siab thiab kev koom tes.



Peb nyob nraum kev ac motor manufacturers thiab lwm tus neeg nyob hauv Suav teb, tshwj xeeb hauv kev muab kev pabcuam zoo. Peb sov siab txais tos koj rau cov lag luam wholesale siab purity ac lub cev muaj zog los ntawm peb lub hoobkas.

Xa kev nug
